FLEOR Alnico 5 Hot Rails Humbucker Pickups Consist of Alnico 5 Magnet and Fiber flatwork ,4-conductor lead wire for multiple wiring options, and is wax potted for squeal free operation. This pickup is a drop-in for any standard single coil pickup route.
Features:
-
100% brand new and quality!
-
Dual Hot Rails Pickup Used for ST/SQ Style or Similar Electric Guitar.
-
A humbucker pickup that can fit into a standard single coil slot.
-
Magnet:Alnico 5.
-
Neck Pickup,Bridge Pickup Position are available.
-
White,Black Colors are available.
-
Resistance: Neck 11-12K ; Bridge 13-14K.
-
Fiber plate flatwork bobbin.
-

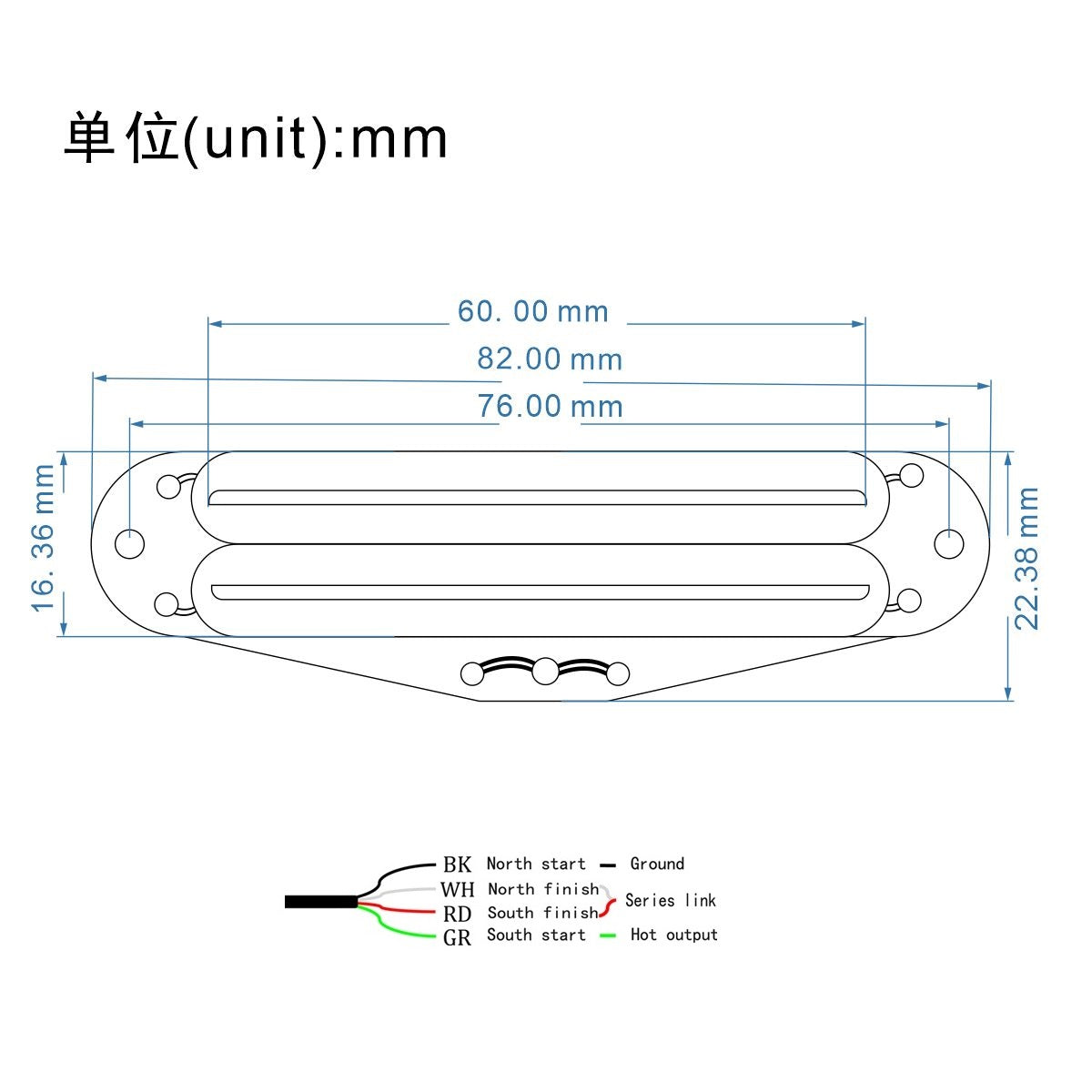

Four conductor wires, the black & bare wire is ground, green wire is hot, red and white is for splitting coil.
-
Fully wax potted and sealed to eliminate any unwanted feedback and noise..
-
The pickup come with screws and springs, easy to install.
How to distinguish N and B pickup：
the white plastic tube represent neck pickup, the yellow plastic tube represent bridge pickup.
