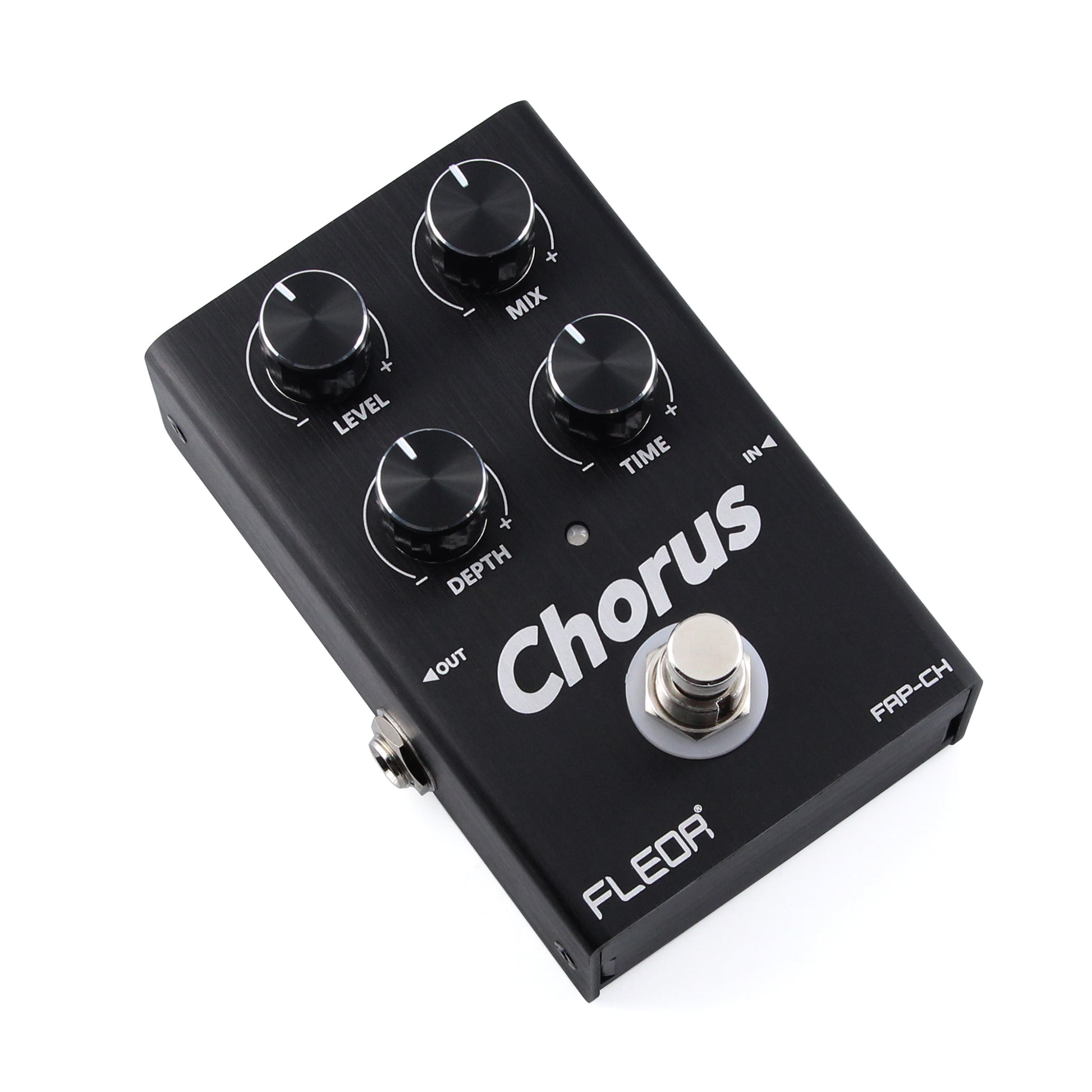

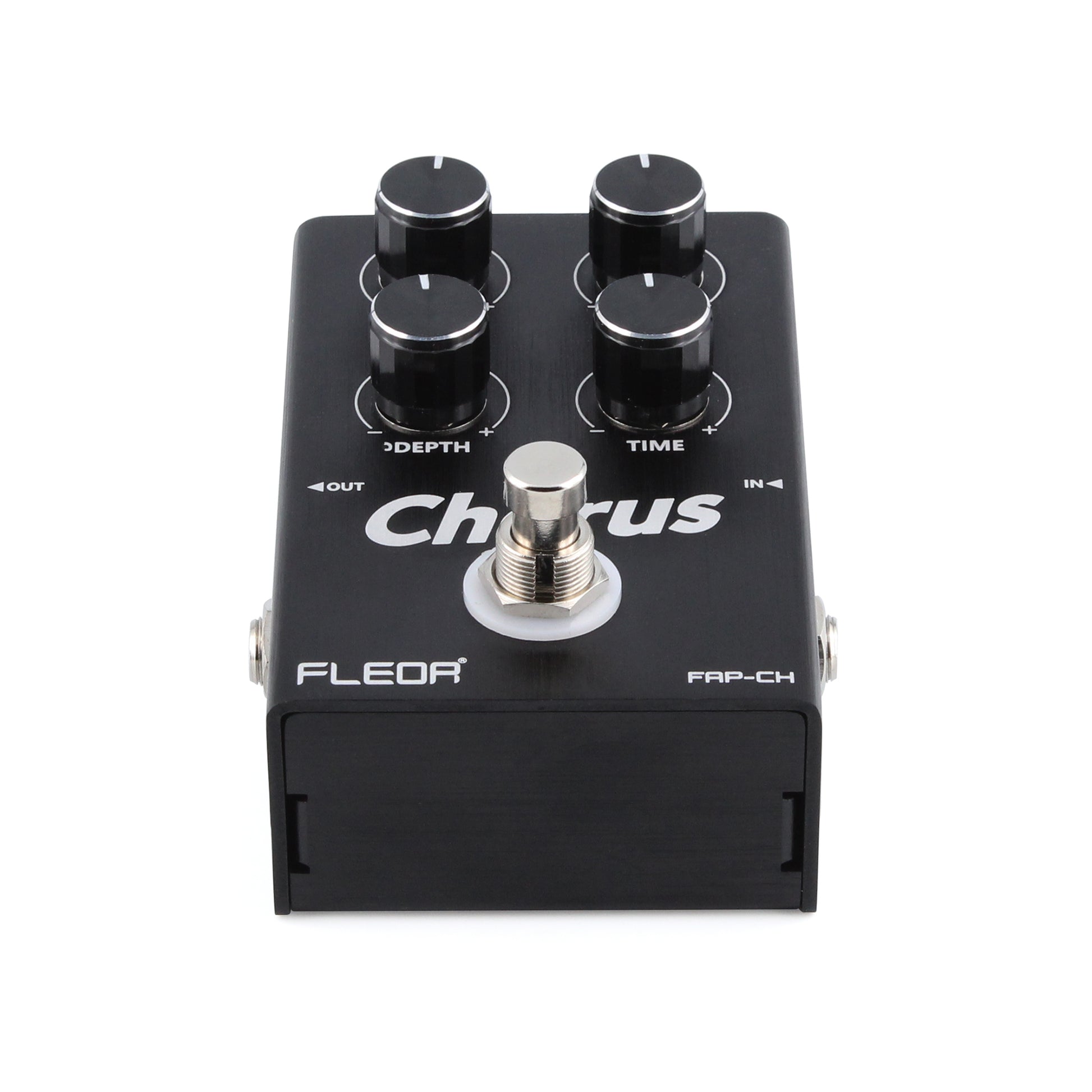

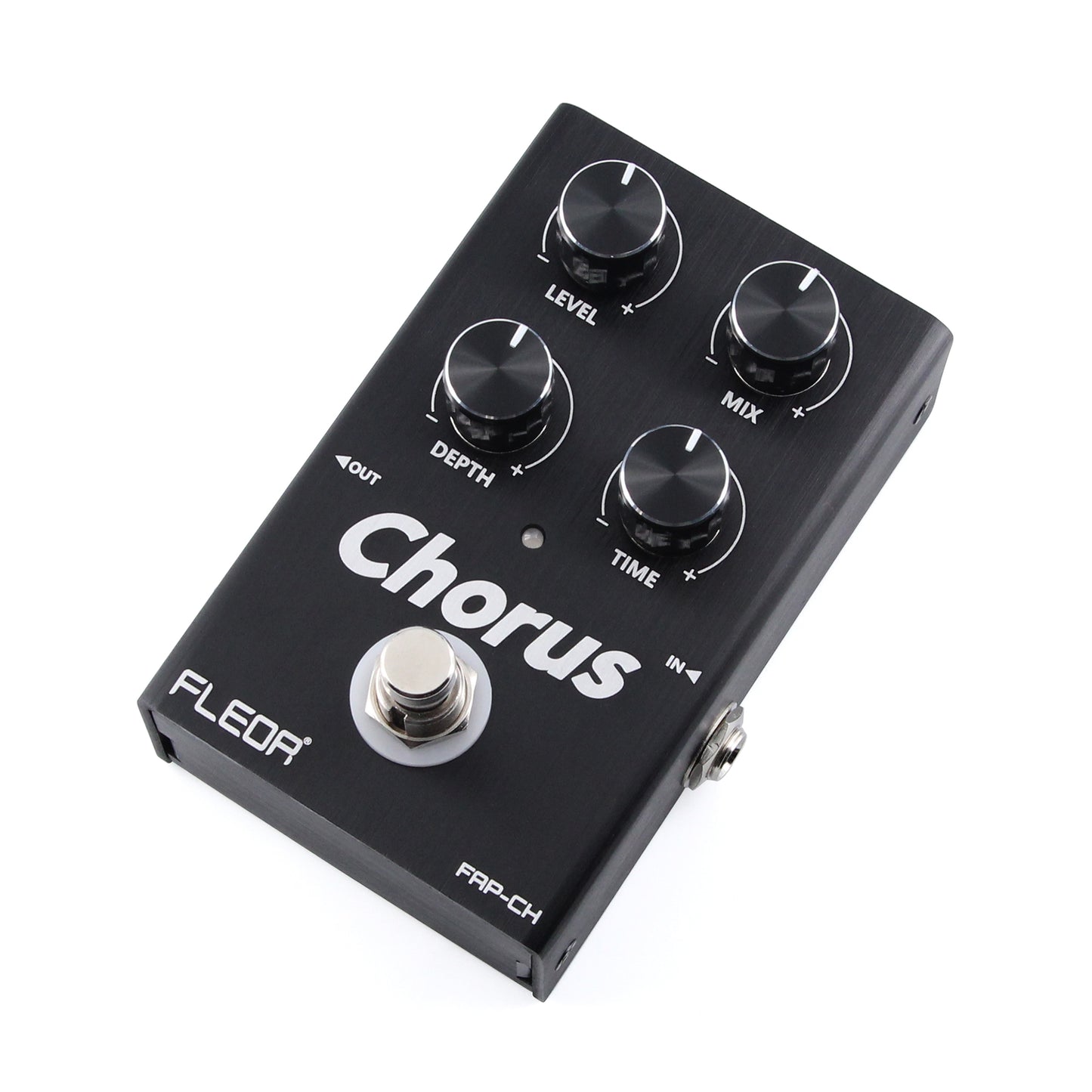

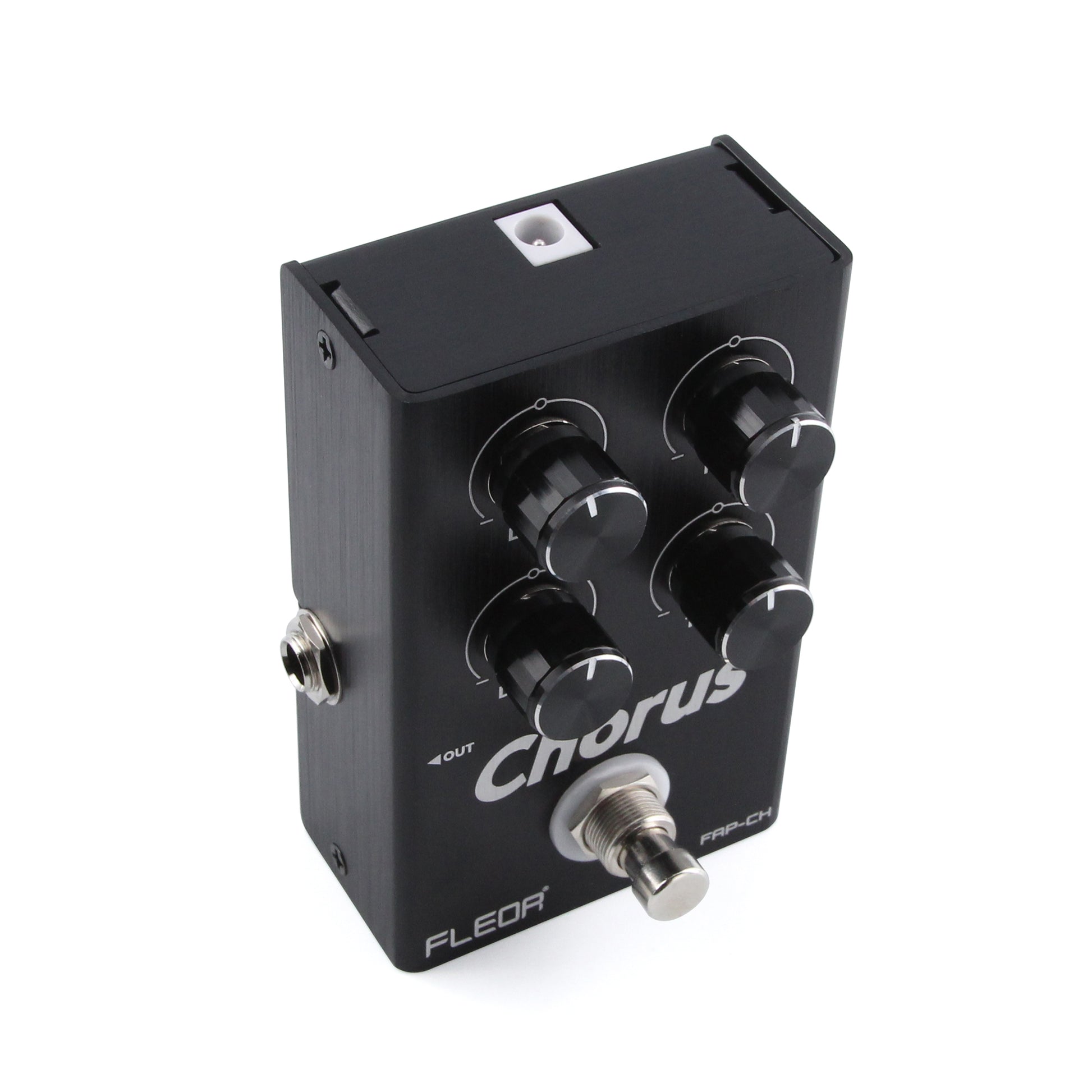

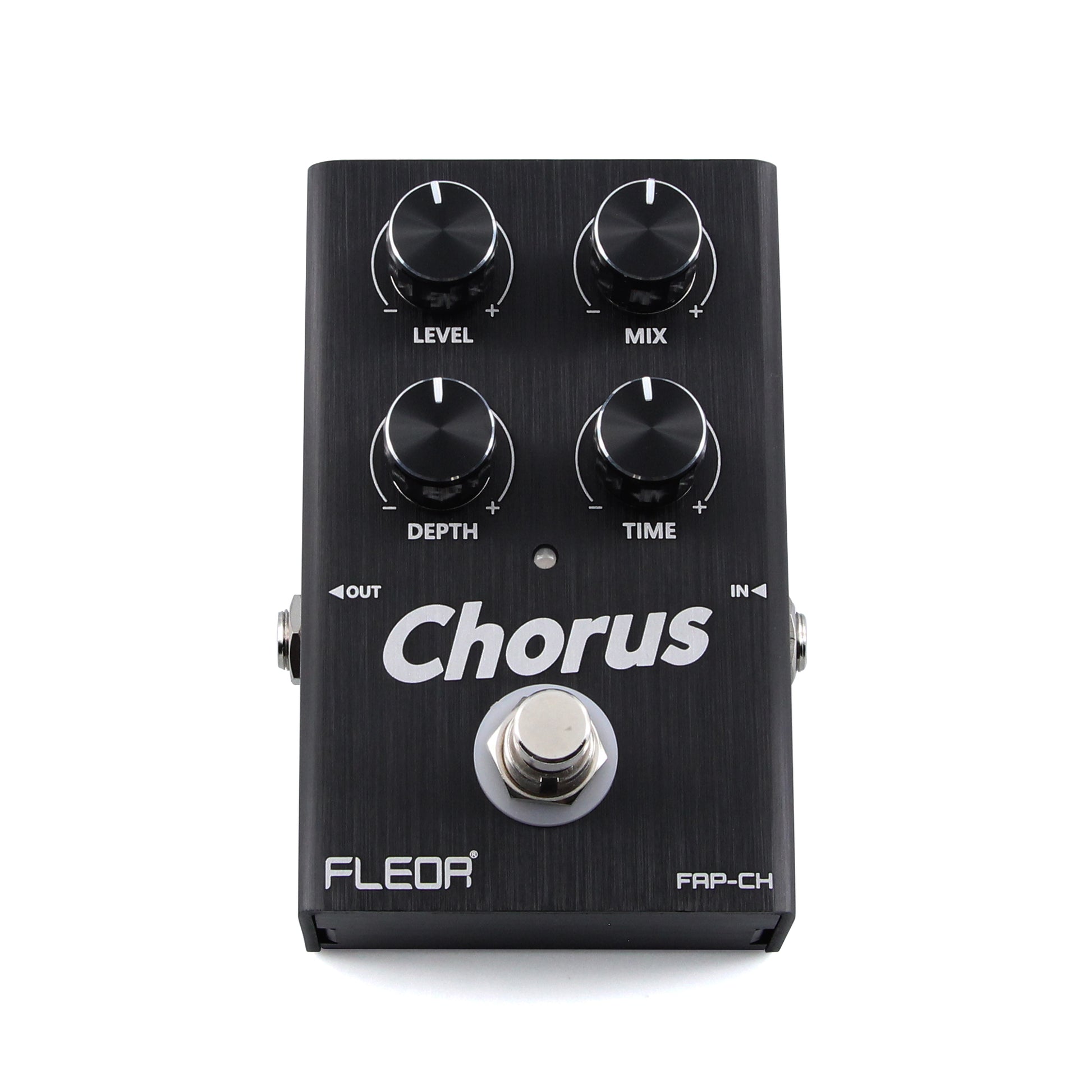

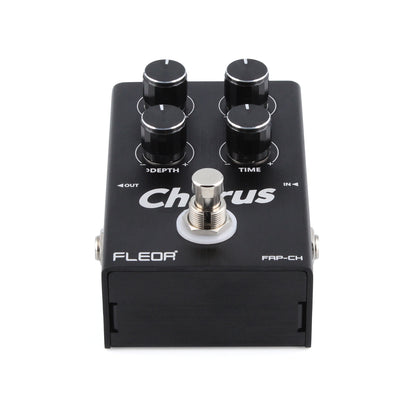

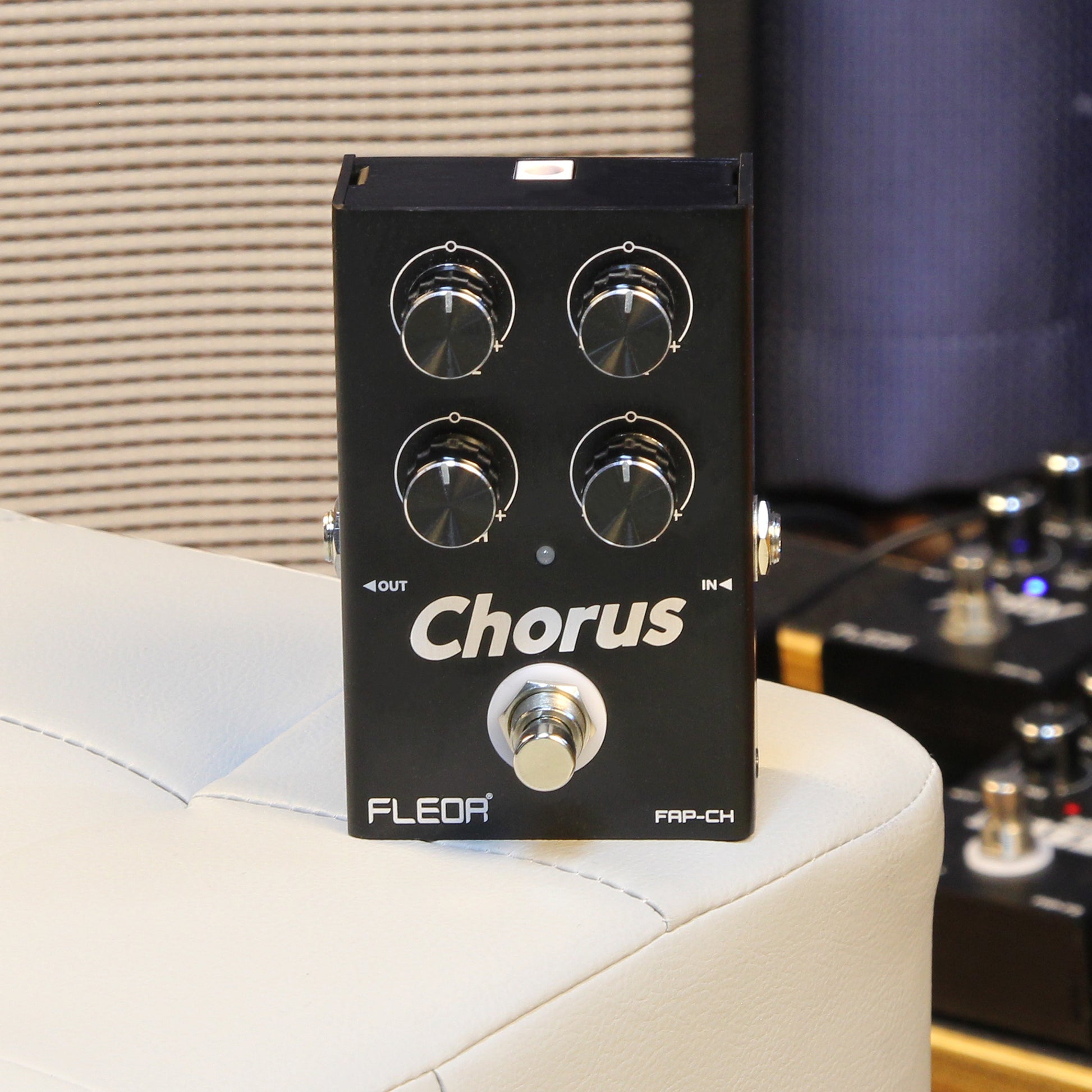

FLEOR FAP-CH Analog-Voiced Chorus Pedal

   Specifications

   • Circuit Type: Analog-voiced chorus circuit
   • Core Chip: PT2399 modulation processor (analog-voiced design)
   • Op-Amp: TL072 JFET-input audio op-amp
   • Input Impedance: High input impedance
     (protects original dynamics & clarity)
   • Output Impedance: Low output impedance
     (stable drive for downstream devices)
   • Bypass: TRUE BYPASS (pure analog signal path; when the pedal
     is off, the signal completely bypasses the circuitry)

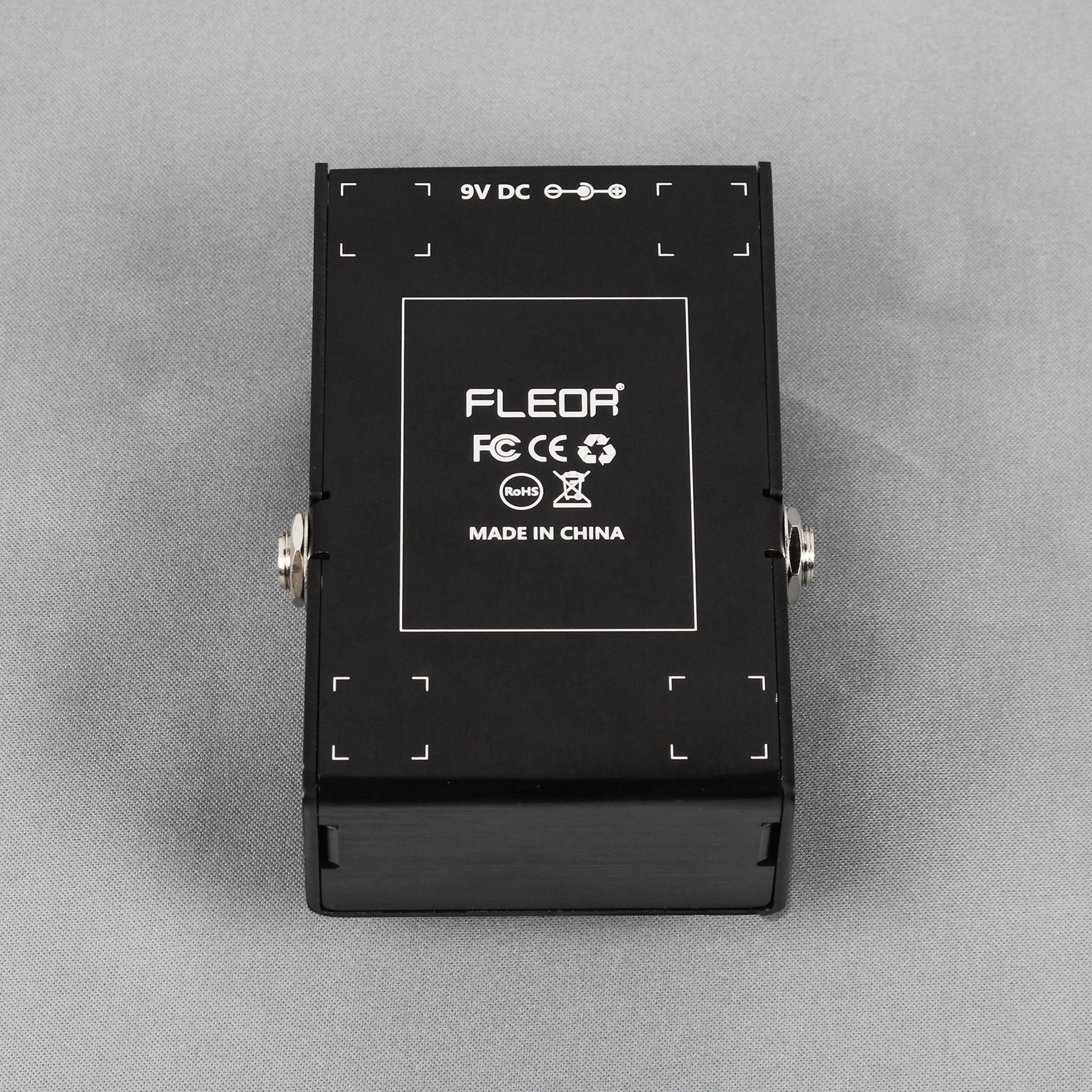

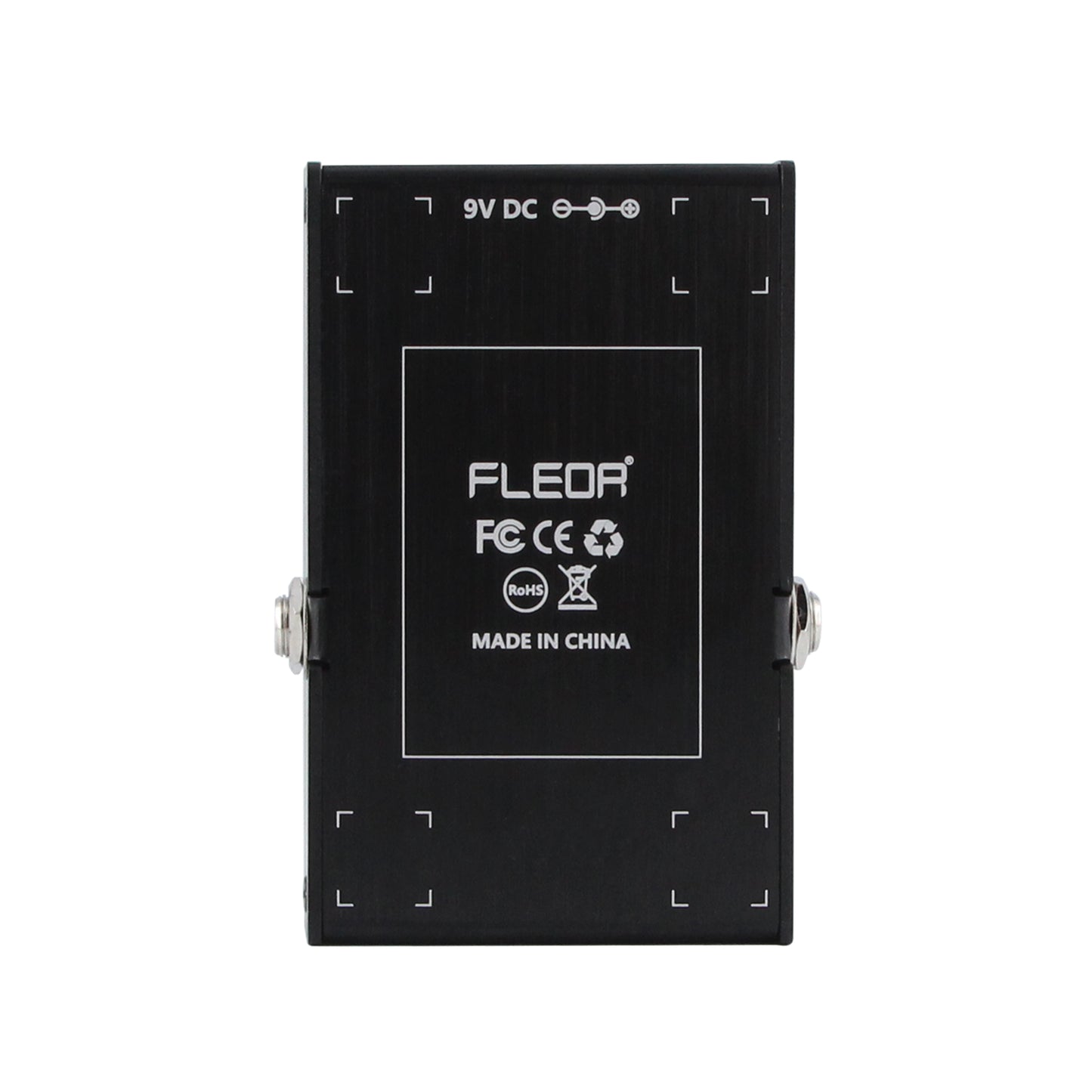

   • Power: 9V DC center-negative, standard pedal power supply
   • Compatible Instruments:
      Electric Guitar
      Electric Bass
      Synthesizer
      Digital Piano
      Other line-level instruments
   • Construction:
      Metal enclosure
      Mechanical footswitch

   Key Features

   • Analog-Voiced Chorus Engine (PT2399 Core)
     Analog-style modulation treatment with warm, fluid motion and
     natural pitch drift.
   • TL072 JFET Op-Amp
     High dynamics, low distortion, smooth response, and fuller analog
     character.

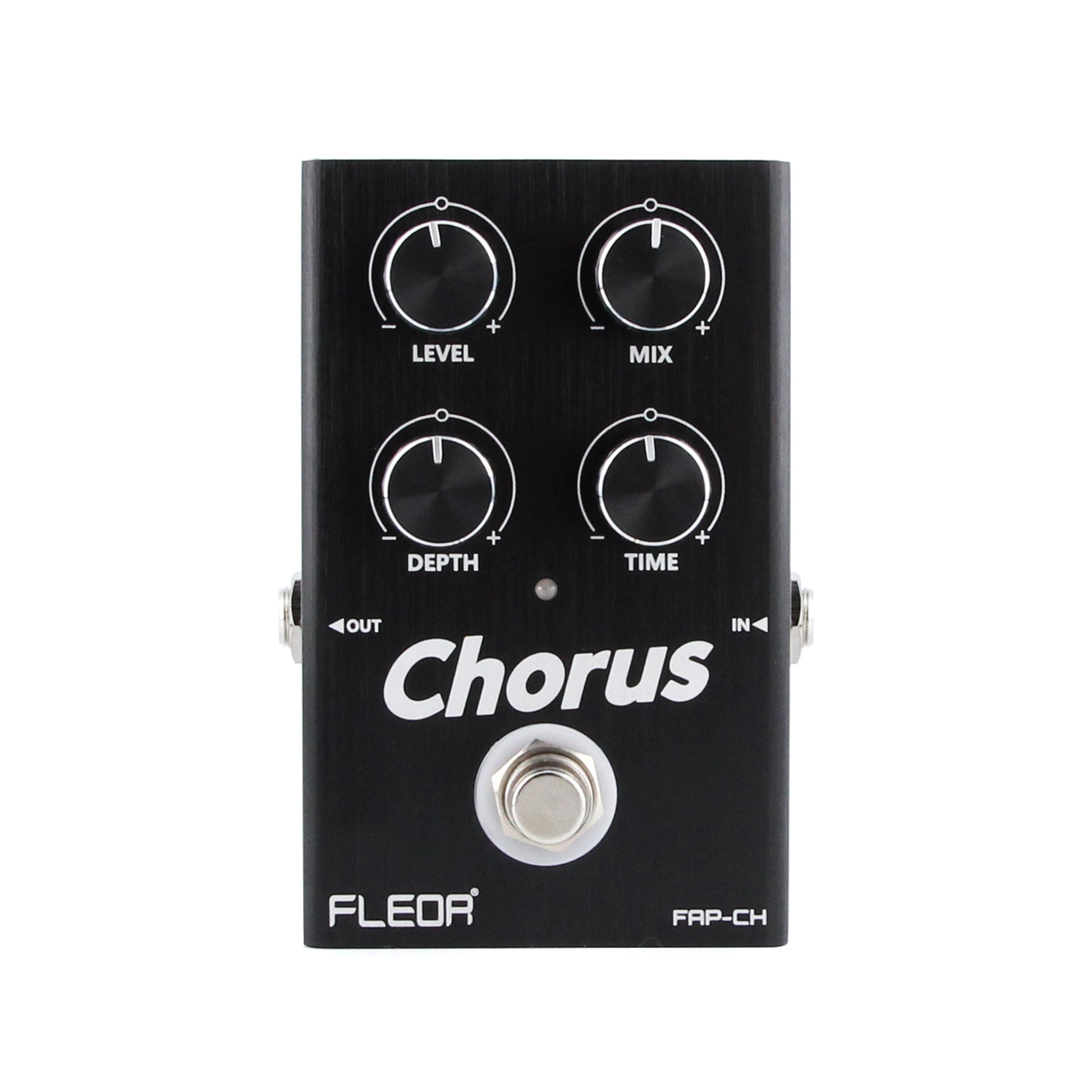

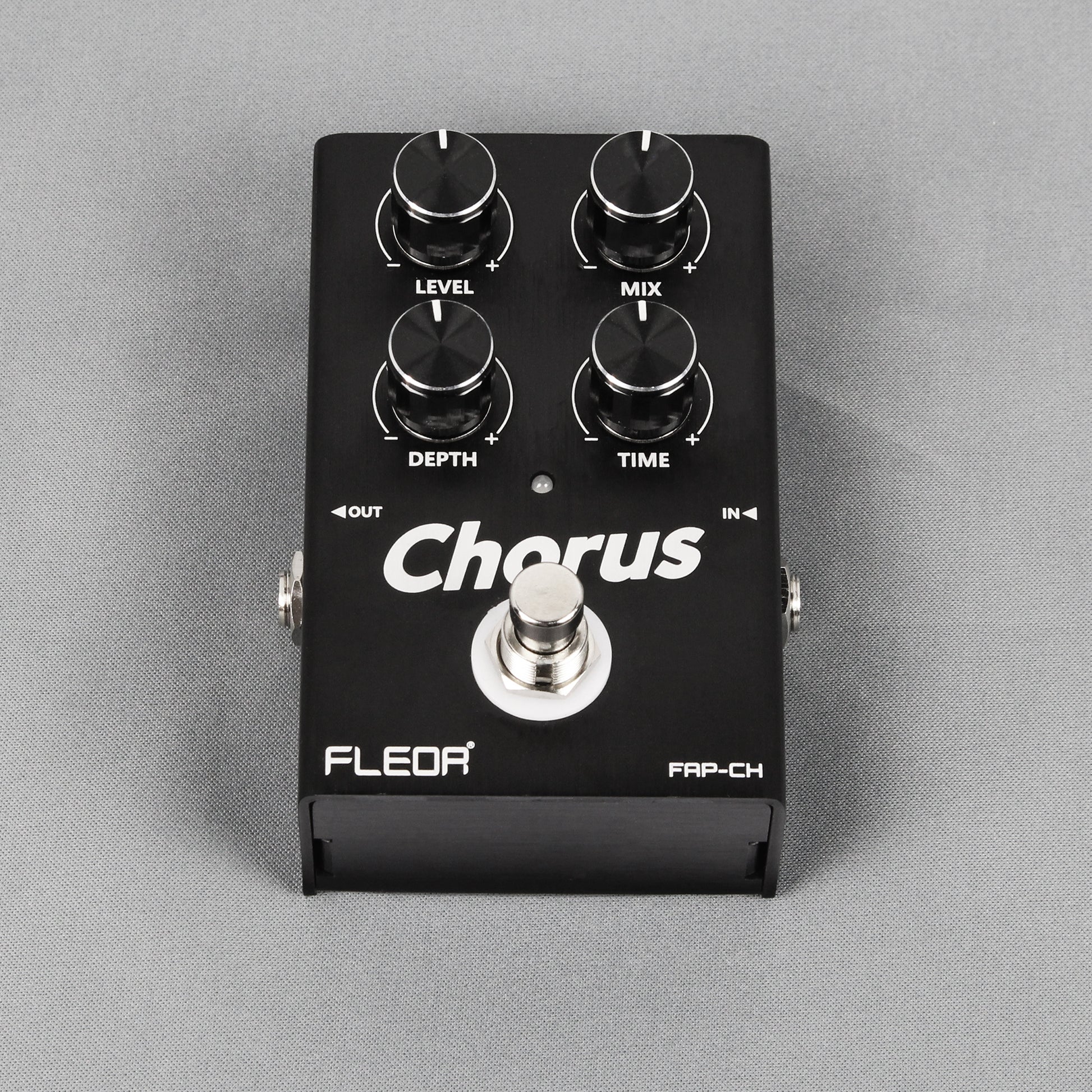

   • 4-Knob Full Chorus Control
     LEVEL – Overall chorus output
     MIX – Dry/Wet blend
     RATE – Modulation speed
     DEPTH – Modulation width / intensity
     From subtle shimmer to wide, spacious movement.
   • TRUE BYPASS (Pure Analog Signal Path)
     Analog Signal Path true bypass ensures zero tone coloration when
     switched off.
   • High Input / Low Output Impedance
     Compatible with guitar, bass, synthesizers, digital pianos, and
     audio interfaces.
   • Full Metal Enclosure
     Durable, stage-ready housing with mechanical footswitch.
   • Low Power Consumption
     Stable operation with standard 9V DC center-negative pedal
     power.

   Tone Description

    The FAP-CH focuses on achieving the thickness, width, and
     fluid motion associated with classic analog chorus.
     Its modulation is smooth and organic—not the cold, rigid
     layering typical of digital chorus.

     Its sound characteristics include:
     Soft, rounded edges with no digital grain
     Gentle pitch movement resembling “water-wave motion”
     Wide, floating spatial perception
     Bright highs, warm mids, stable lows
     On clean tones, it delivers a crystalline, flowing texture.
     Under distortion, it forms a thick, wide wall-of-sound chorus ideal
     for rhythm and backing.

     Overall, its voice leans vintage, natural, smooth, and musical,
     clearly distinct from sharp or overly electronic digital chorus tones.

     Suitable Music Styles
   • Pop
   • Blues
   • Psychedelic Rock
   • Progressive Rock
   • Post Rock
   • Indie Rock
   • Funk
   • Acoustic / Electric Fusion

     What’s in the Box
   • FLEOR FAP-CH Chorus Pedal ×1
   • User Manual ×1
   • Velcro ×1
   • Silicone Feet ×4
   • Color-Coding Label ×1
