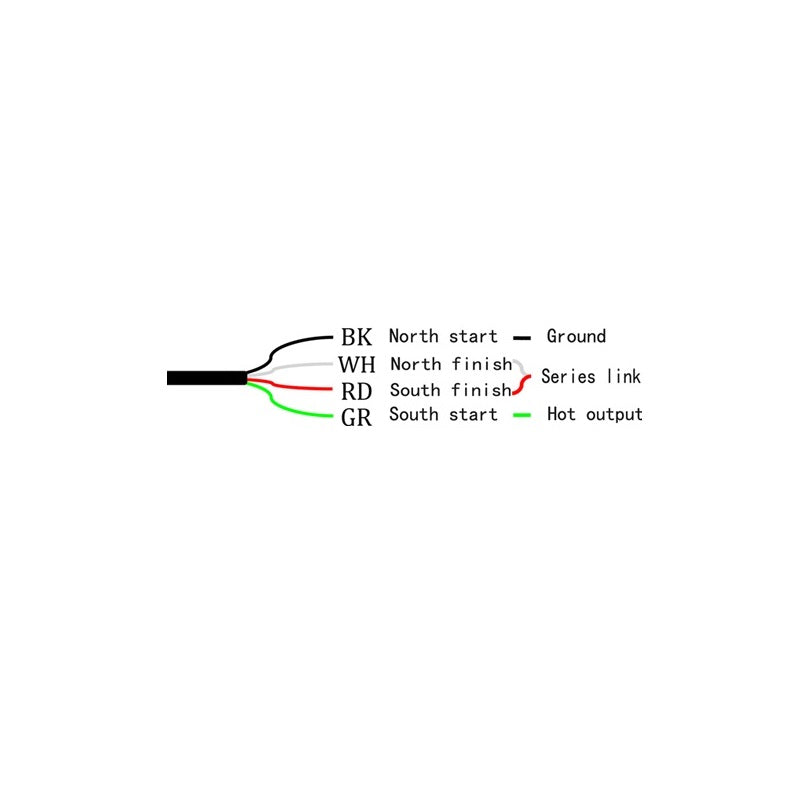

Oripure Pickup Wiring Diagram
  • Load image into Gallery viewer, OriPure Alnico 2 Rail Humbucker Pickup Guitar Pickup for Neck Position-Warm Sound - iknmusic
  • Load image into Gallery viewer, OriPure Alnico 2 Rail Humbucker Pickup Guitar Pickup for Neck Position-Warm Sound - iknmusic
  • Load image into Gallery viewer, OriPure Alnico 2 Rail Humbucker Pickup Guitar Pickup for Neck Position-Warm Sound - iknmusic
  • Load image into Gallery viewer, OriPure Alnico 2 Rail Humbucker Pickup Guitar Pickup for Neck Position-Warm Sound - iknmusic
  • Load image into Gallery viewer, OriPure Alnico 2 Rail Humbucker Pickup Guitar Pickup for Neck Position-Warm Sound - iknmusic
  • Load image into Gallery viewer, Oripure Pickup Wiring Diagram

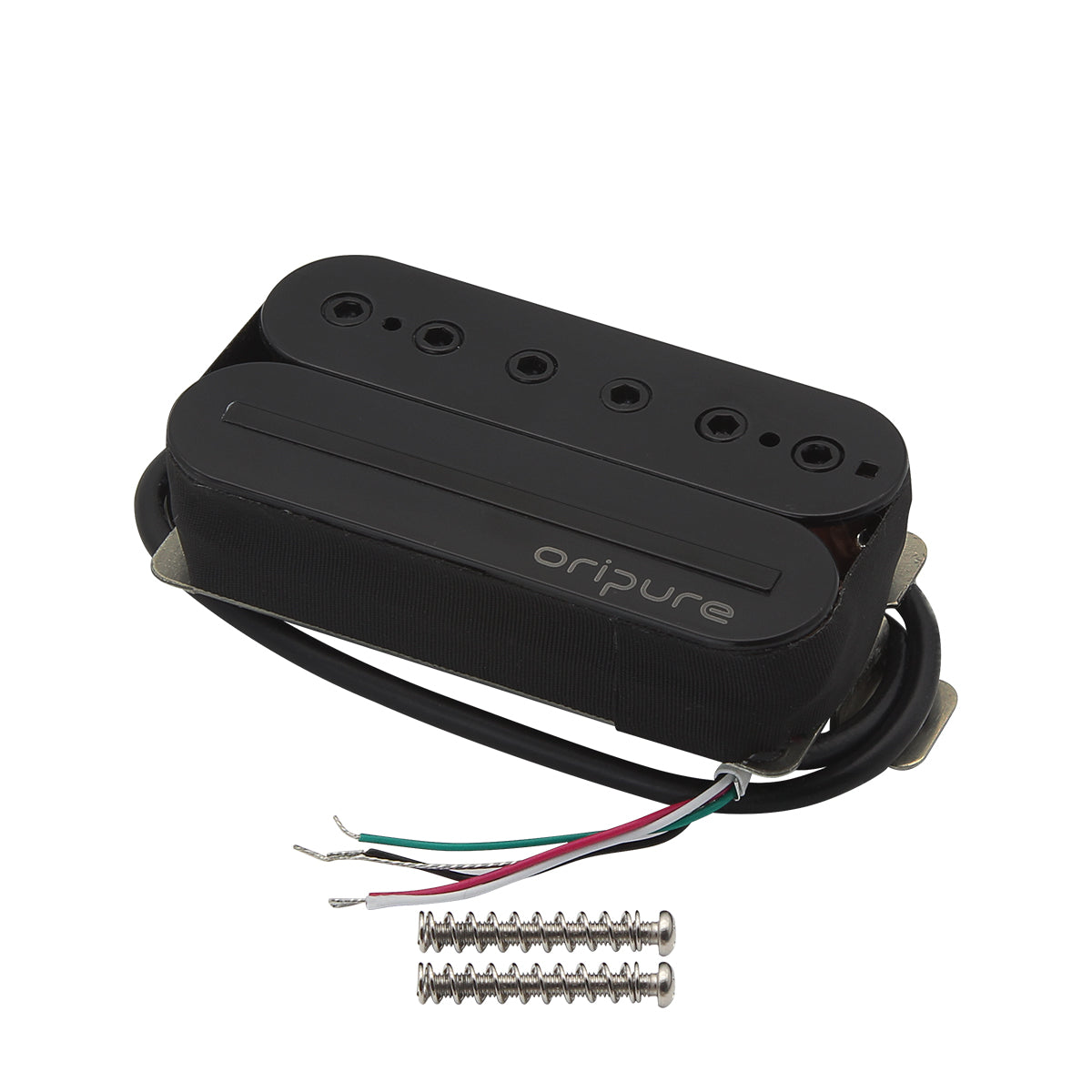

OriPure Alnico 2 Rail Humbucker Pickup Guitar Pickup for Neck Position-Warm Sound

Vendor
Oripure
Regular price
$39.00
Sale price
$39.00
Regular price
$49.99
Sold out
Unit price
per
Shipping calculated at checkout.

One Pickup, Three Tones!
Oripure Pole / Rail Humbucker Pickup consist of adjustable poled coil on one side and a hot rail blade on another coil, delivers a unique tonal blend.
Pole / Rail humbucker delivers all three sounds in one pickup , with standard full-size humbucker slot. Comes with a 4-conductor leadwire for all of the wiring options, and are vacuum wax potted for squeal free operation.
The neck version use Alnico 2 magnet,7.4K resistance,4.10H inductance .

Feature:
  • Alnico 2 Humbucker Pickup Fits For ST,IBZ,PRS,LP style guitar & other electric guitar with a modification .
  • A single blade & adjustable hexagonal screw pole-pieced single coil style humbucker pickup .
  • Passive pickup,comes with a 4-conductor leadwire for all of the wiring options, and are vacuum wax potted for squeal free operation.
  • Humbucker Pickup Has Warm, Full, Slightly Strong Sound.
  • One pickup includes 2 x screws and 2 x springs,easy to install.
Specifications:
  • Modle:PSB-2N.
  • Position: Neck Pickup.
  • Magnet:Alnico 2.
  • Pole Piece : Blade pole piece & 50mm spacing hole adjustable hexagonal pole piece.
  • Resistance: Total approx.7.4-8k ohms, single coil is 3-4 K ohms.
  • Peak Frequency:4.10H.
  • Base Plate: Copper-nickel alloy.
  • Output line: One 4 cores cable can be switched to single .
​Package Included:
  • 1 x Humbucker Pickup
  • 2 x Screws
  • 2 x Springs
