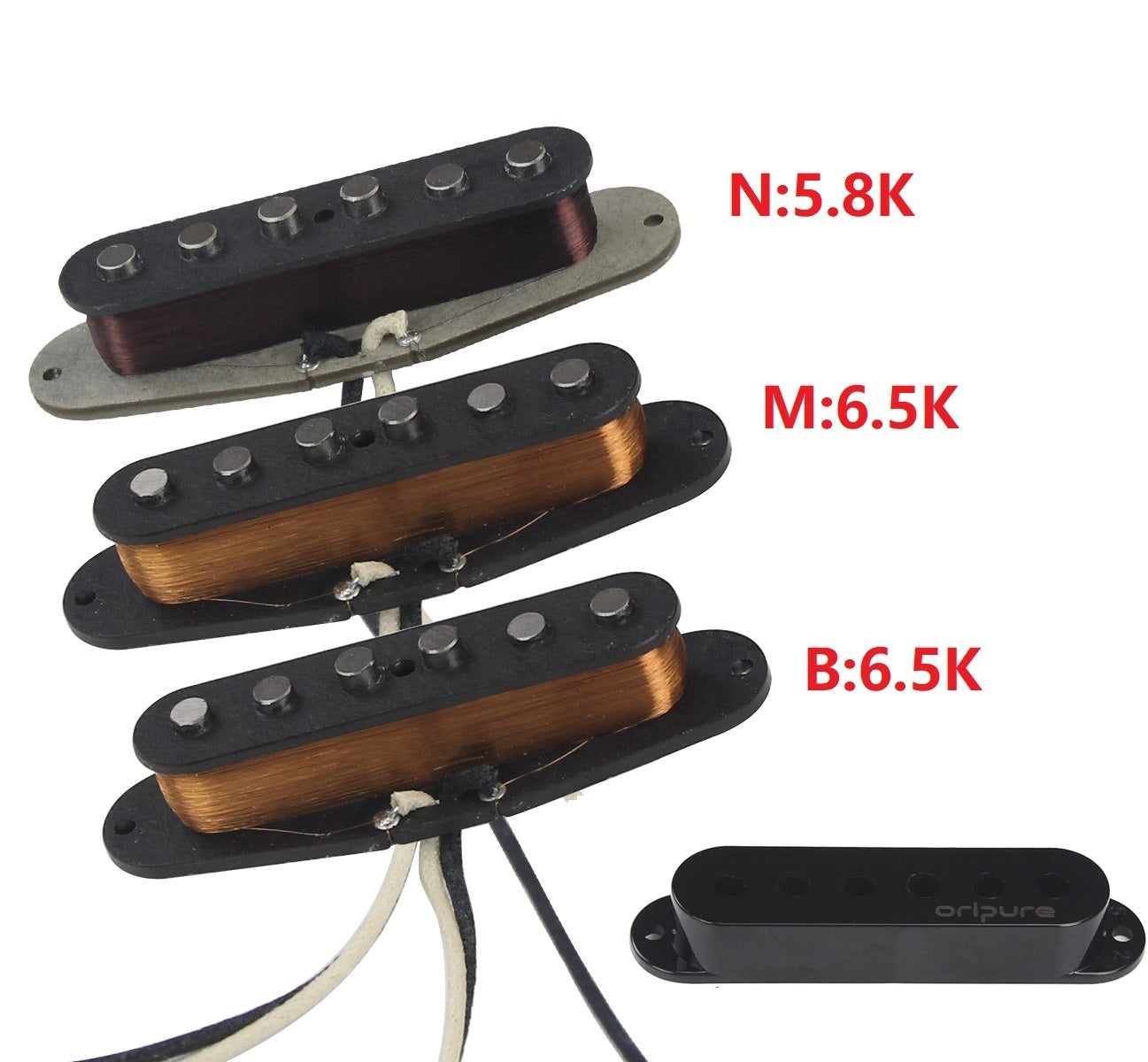

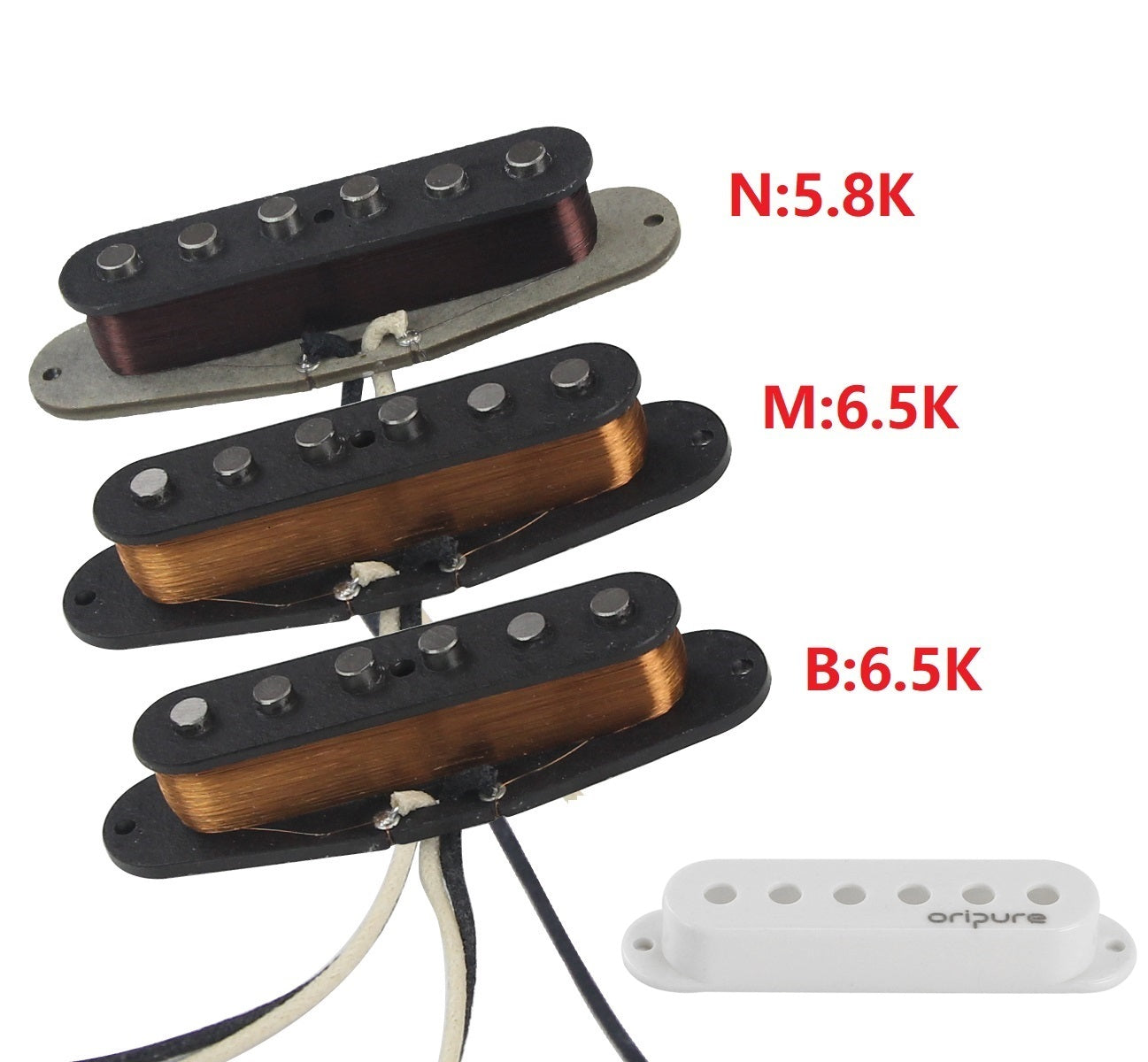

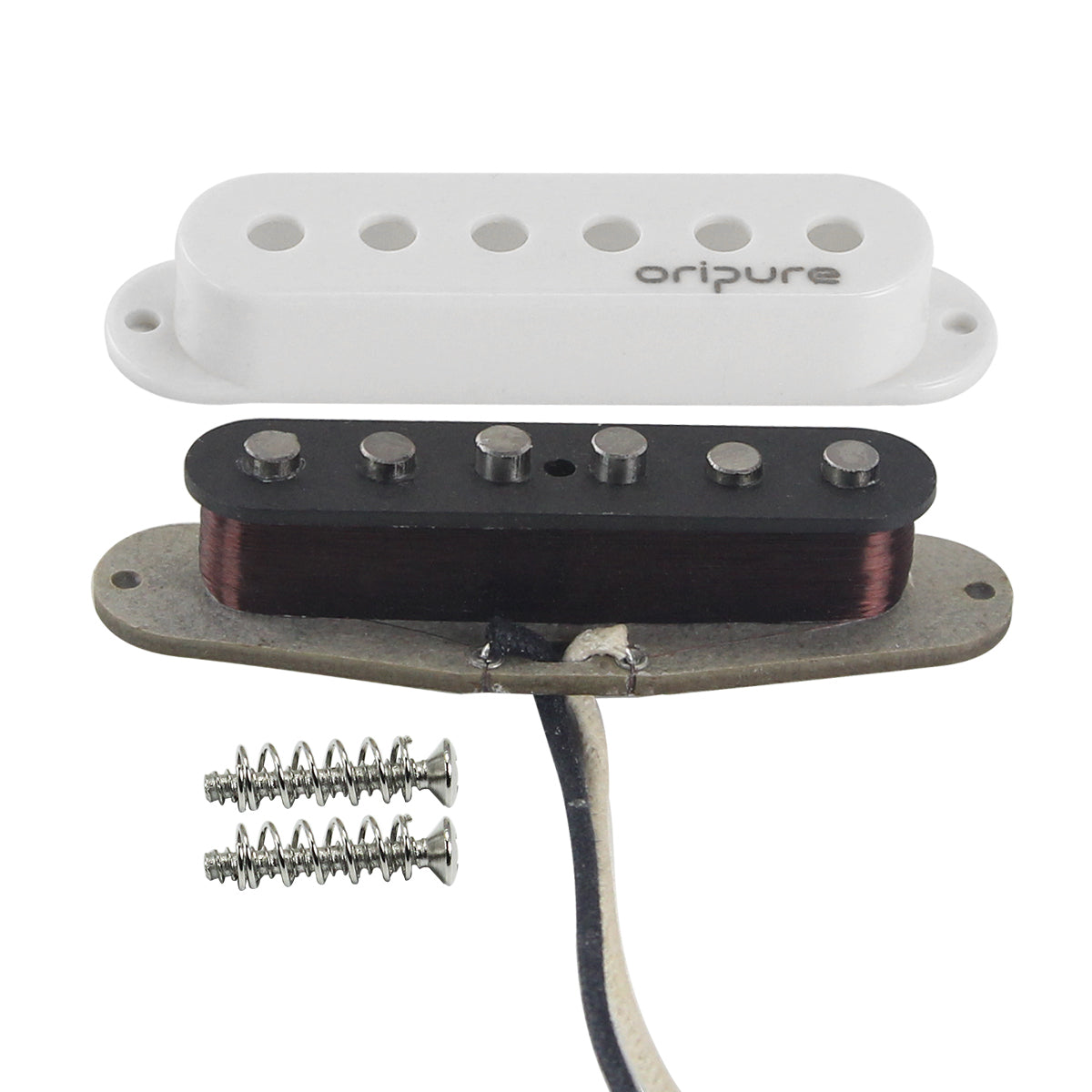

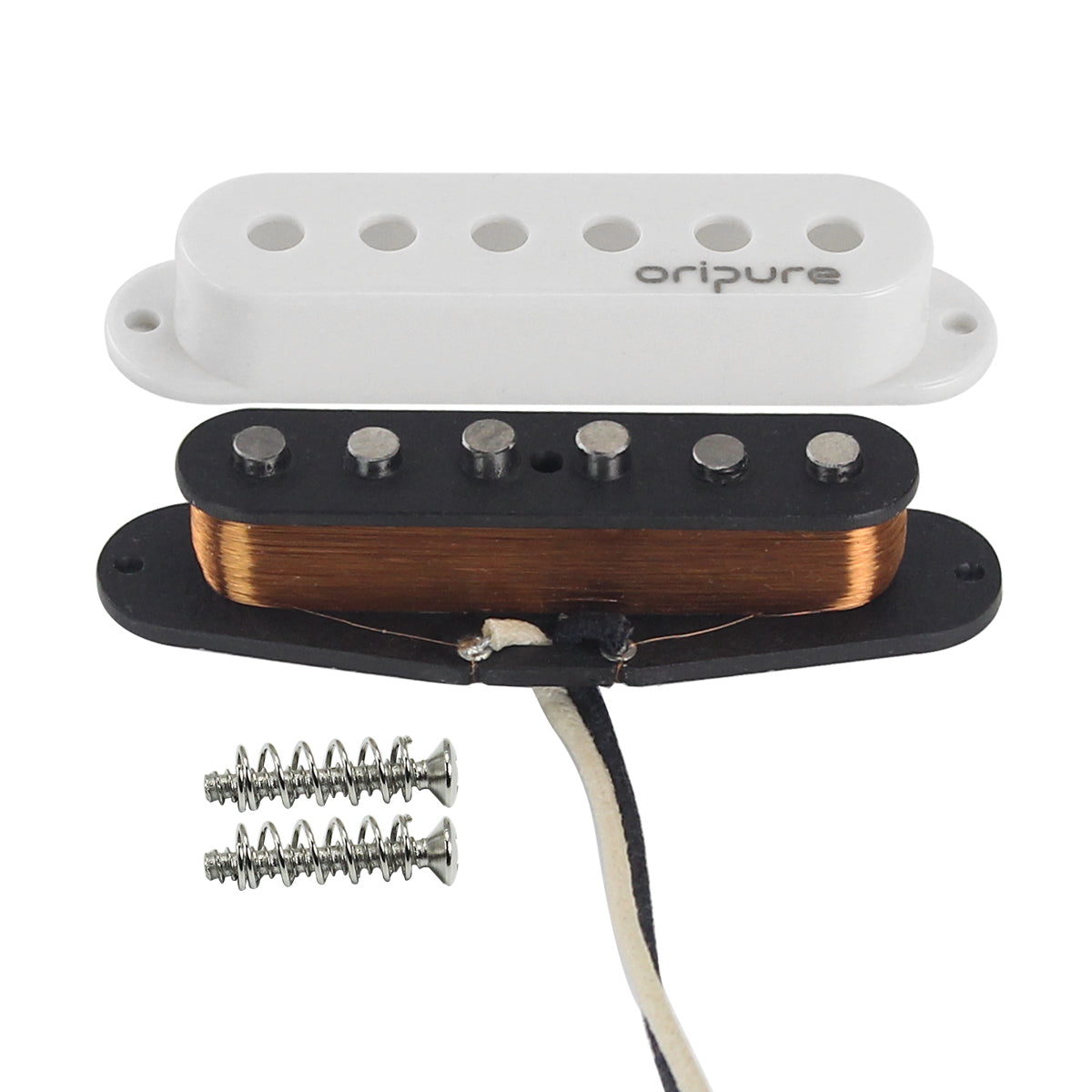

OriPure V Series TSF558 Vintage Staggered Alnico 5 Guitar Single Coil Pickup for Strat

OriPure V Series TSF558 Vintage Staggered Alnico 5 Guitar Single Coil Pickup for Strat

Regular price $32.50
Regular price $39.04 Sale price $32.50
Sale Sold out
Shipping calculated at checkout.

Low stock: 5 left


🎵New Version OriPure TSF558 Vintage Staggered-pole Single Coil Pickups fit for ST/SQ Style Electric Guitar Parts Replacement.
🎵Use Alnico 5 magnets, 42 AWG wire,vulcanized fiber bobbin and waxed cotton braided push-back cable,exquisite craftsmanship brings a great sound to your guitar.
🎵Staggered pole pieces balances the output across the strings.
🎵The middle pickup is reverse wound and reverses polarity (RwRP) for hum cancellation at the #2 and #4 switch positions.

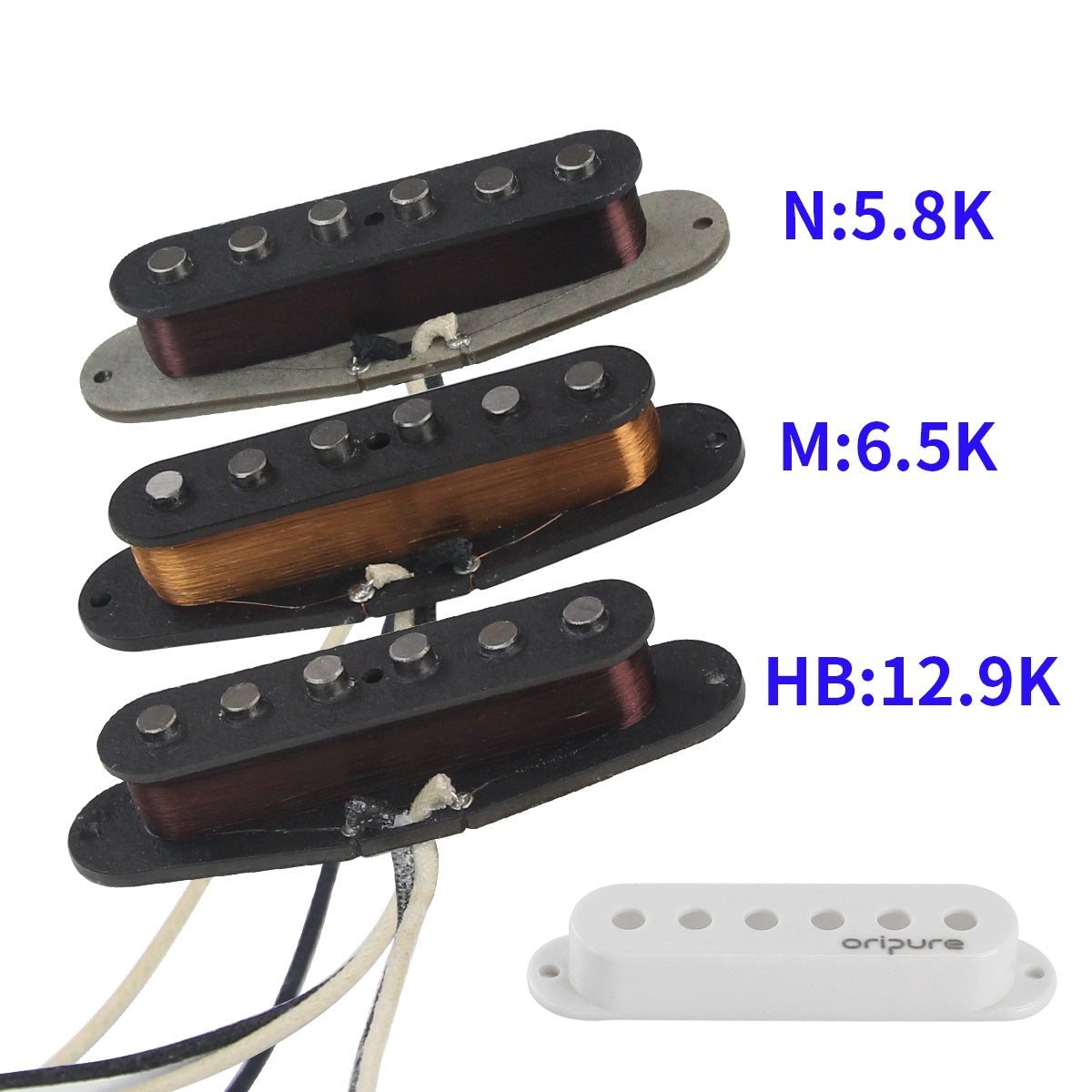

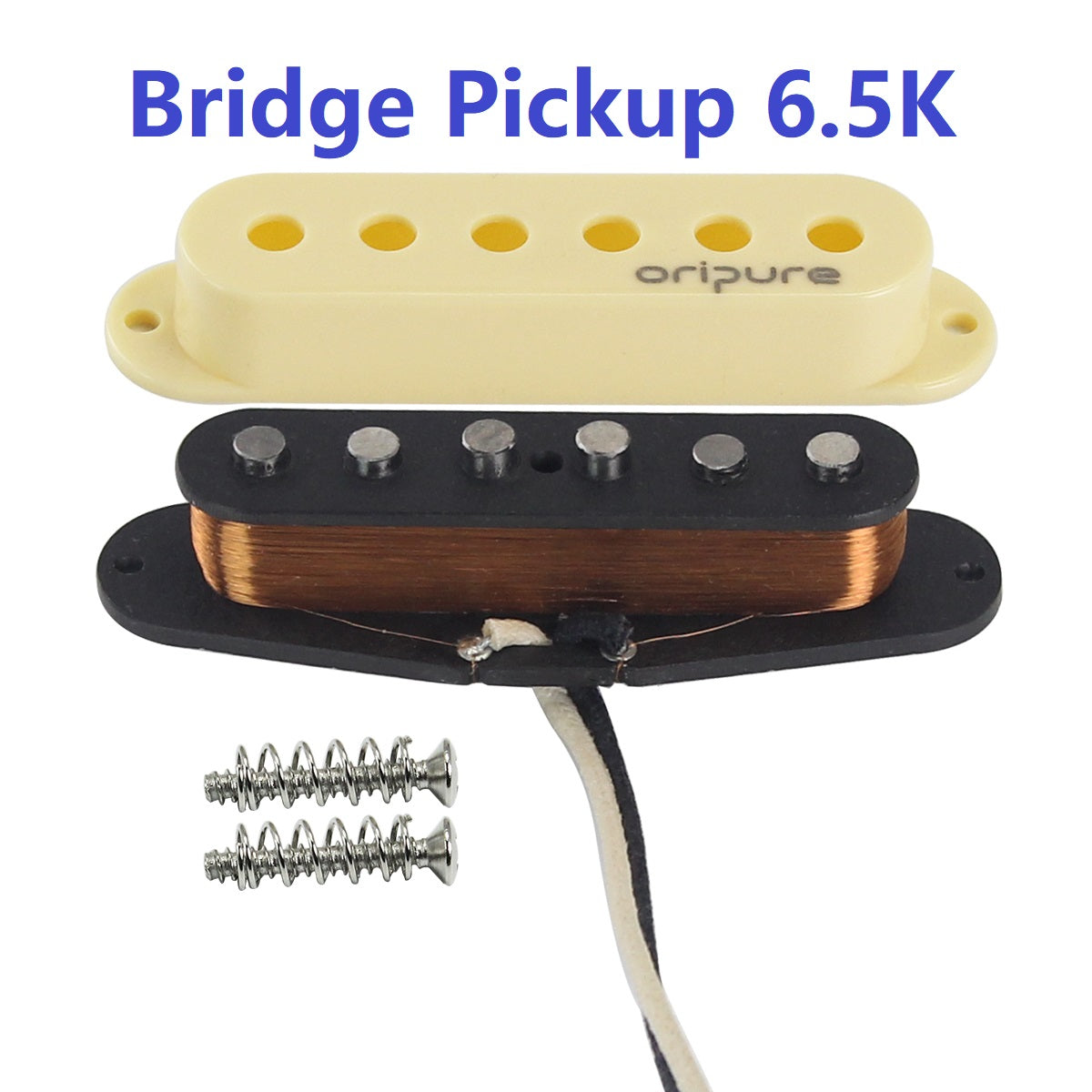

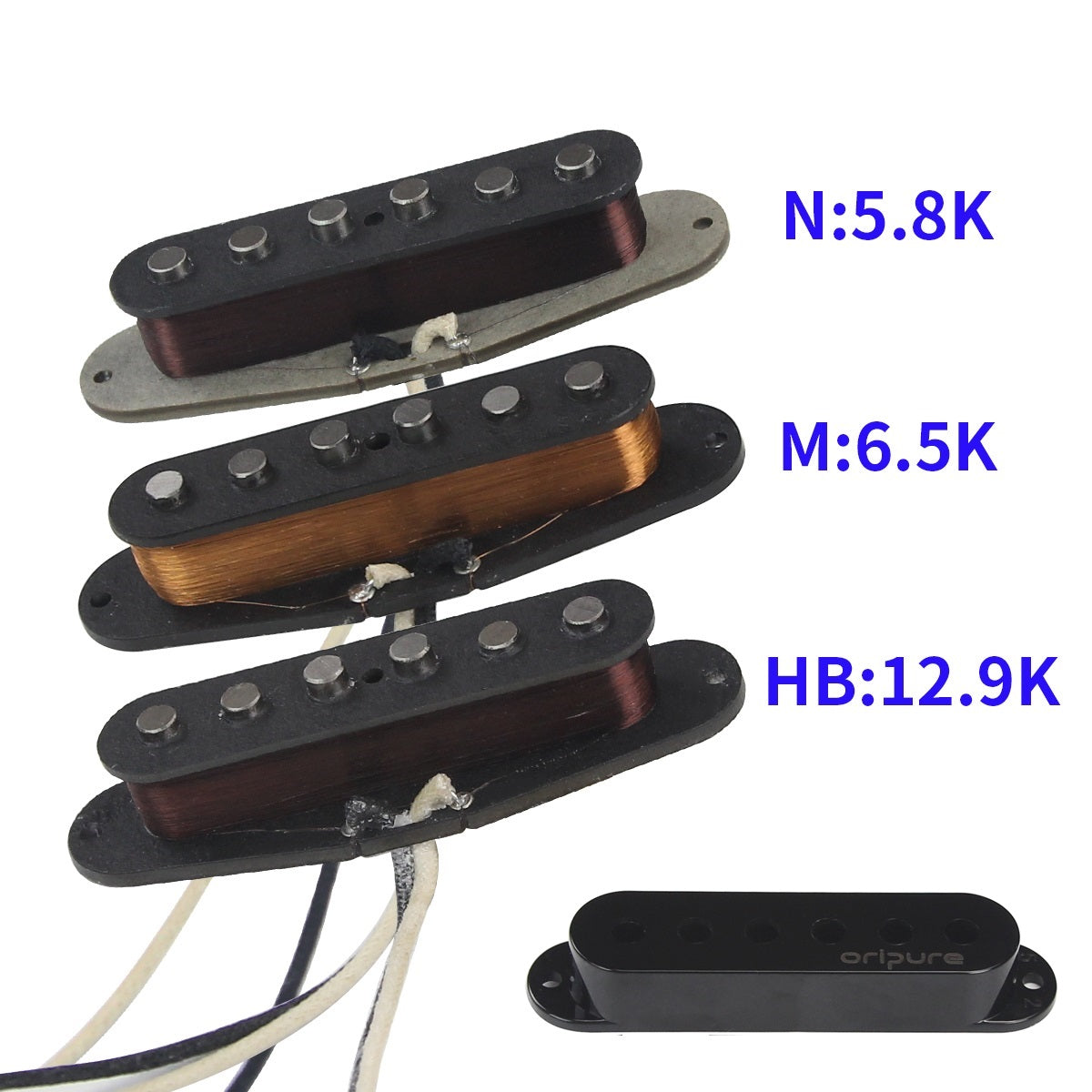

🎵The Bridge Pickup provide 6.5K and 12.9K Overwound version, Overwound pickup can result in a higher output and a hotter, more aggressive tone compared to standard pickup.
🎵The iconic electric guitar tone of the golden age of rock. Jazz, Funk, Britpop, Psychedelic, bring people back to the 90s with crisp, sweet, delicate sound.
🎵Each pickup is fully wax potted for squeal-free performance,

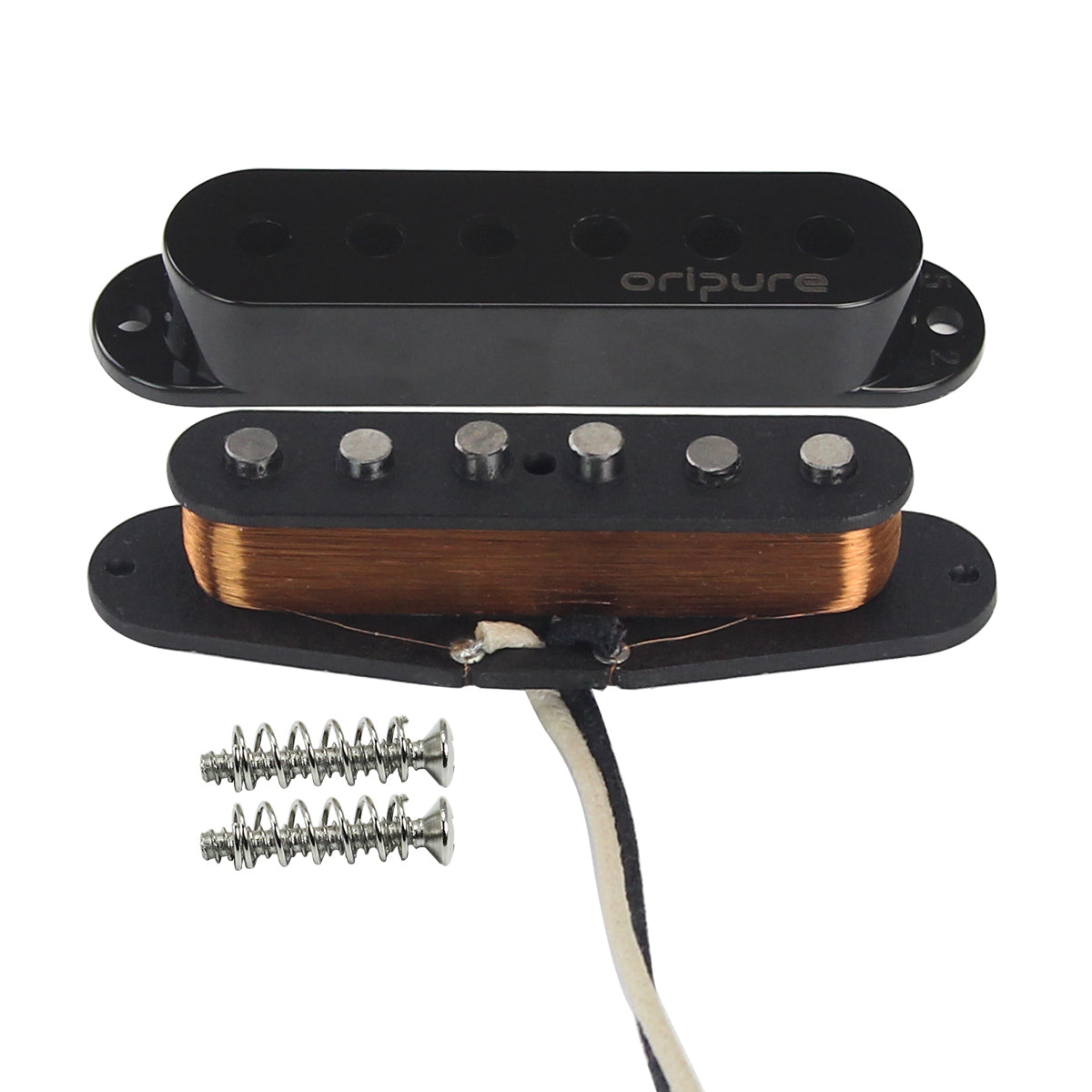

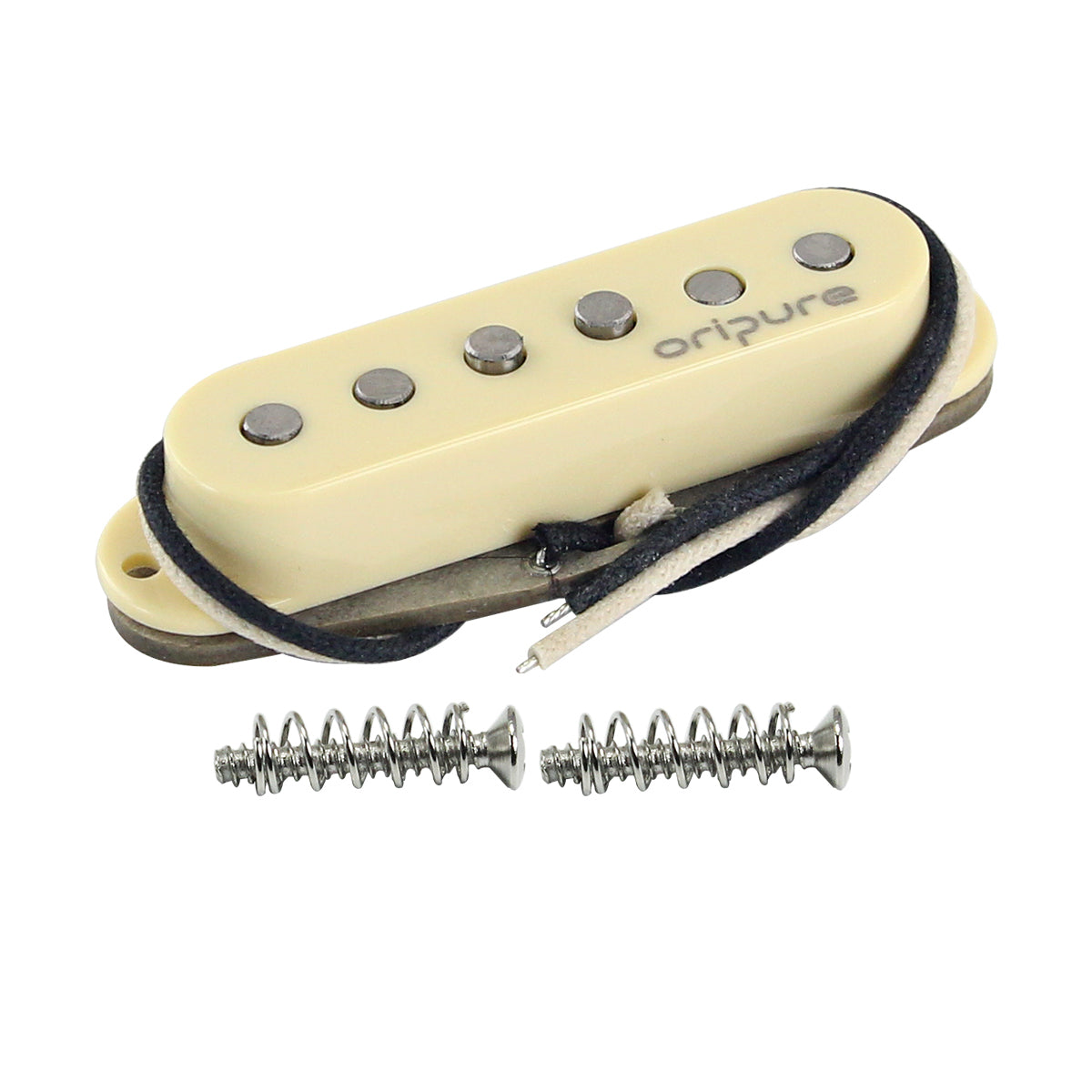

🎵Mounting screws, springs are included.


      🎵Position: Neck /Middle/Bridge Pickup for choose.

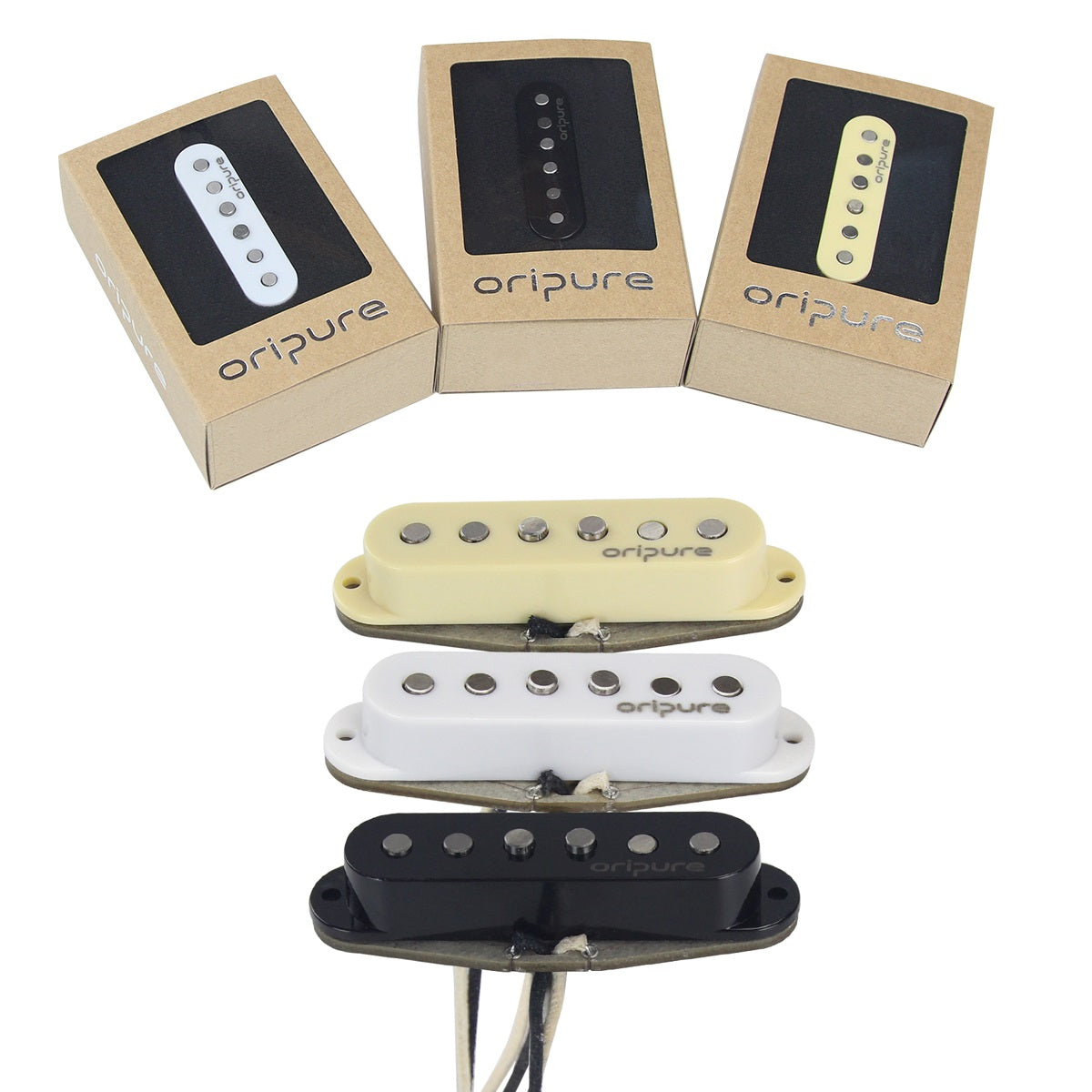

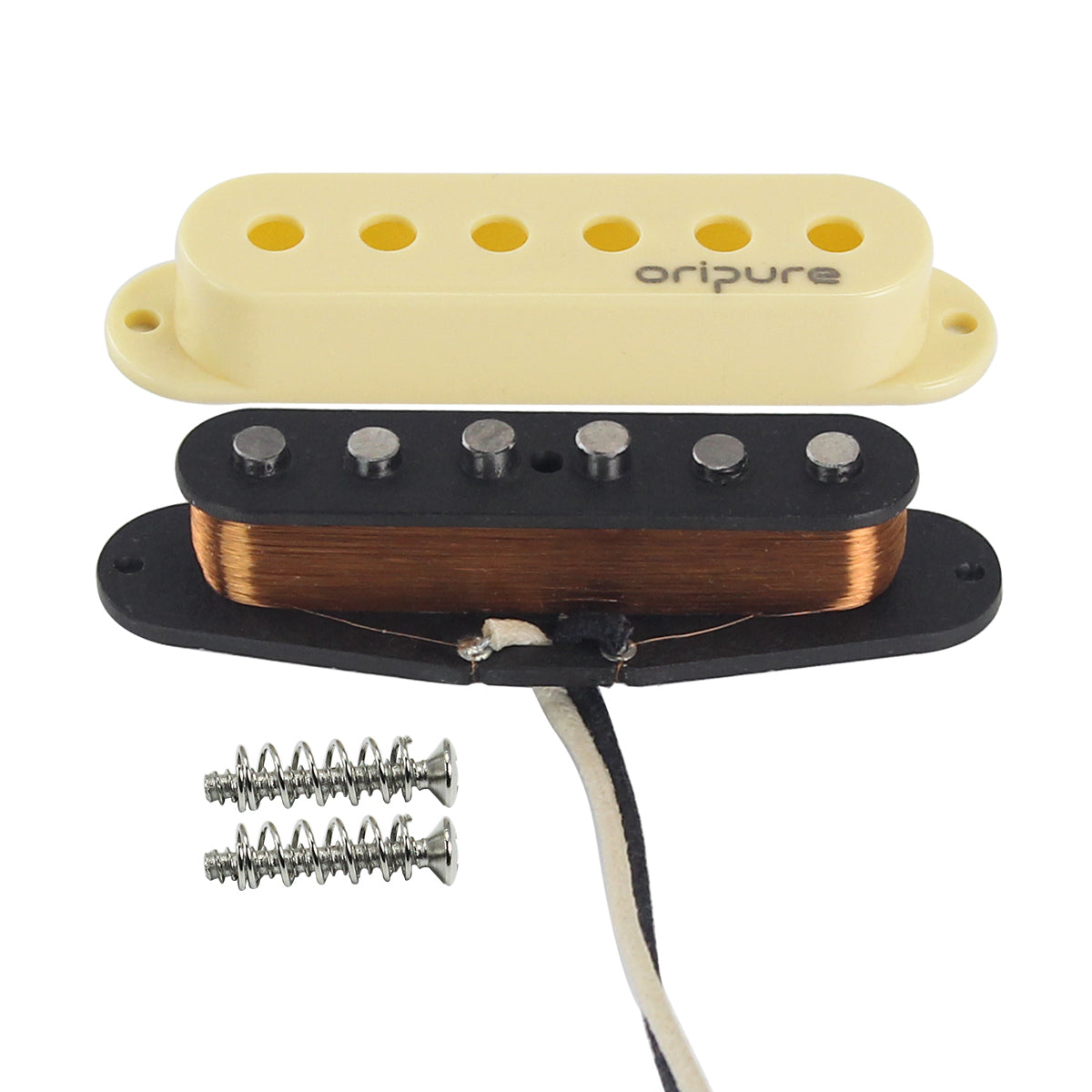

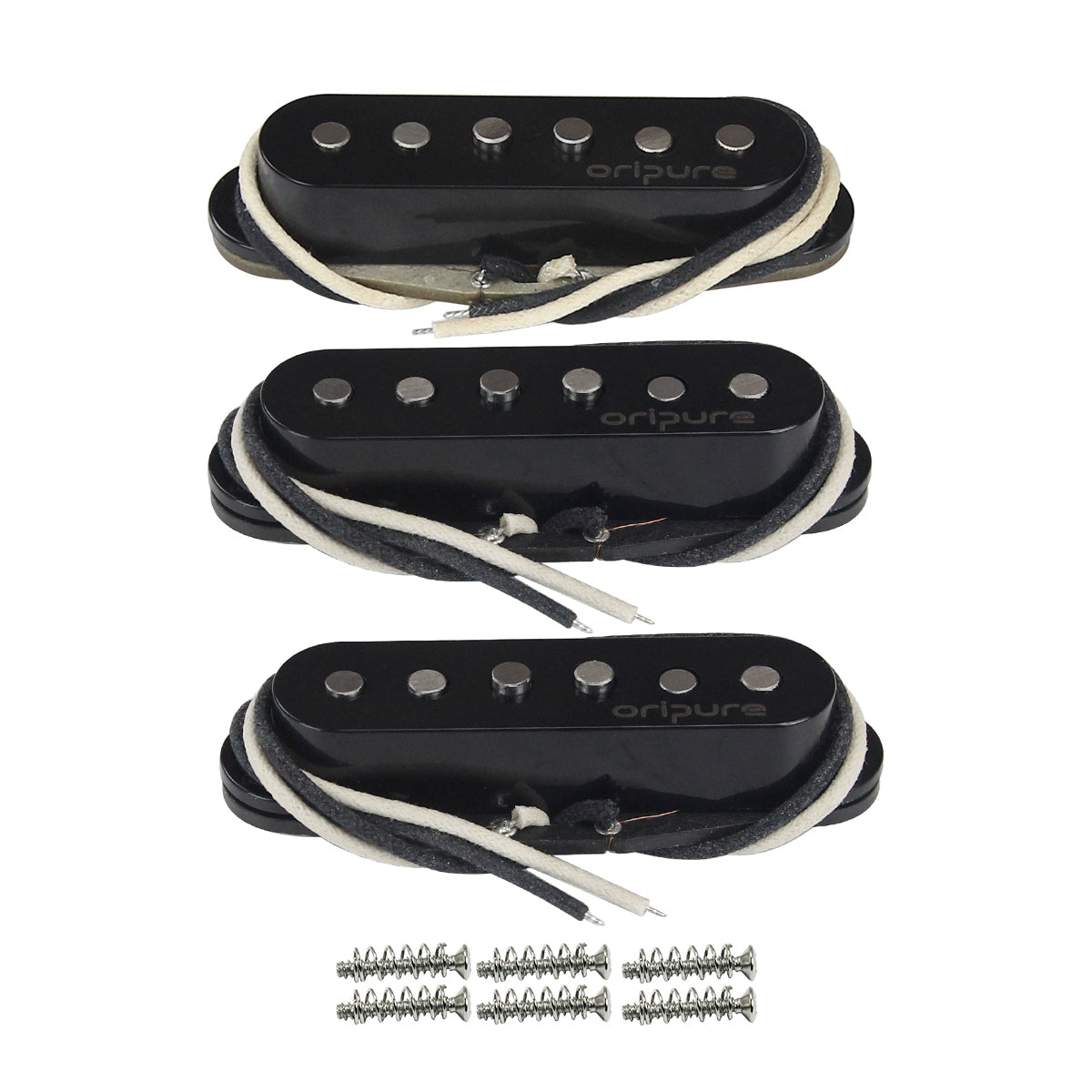

      🎵Color: Black/ White / Cream colors for choose.
      🎵Magnet: Alnico 5 (Alnico V).
      🎵Pole Pieces: Staggered pole pieces.

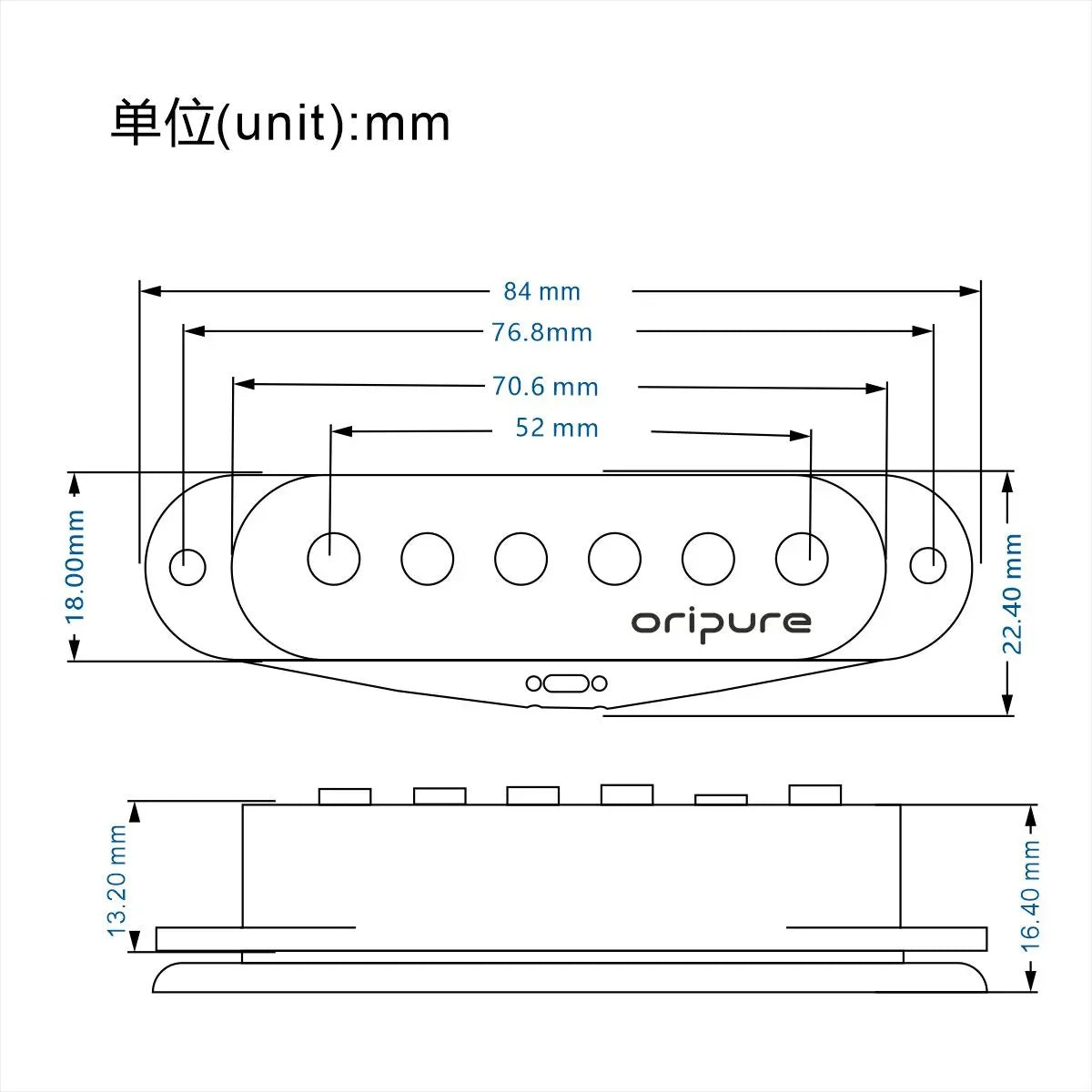

      🎵Pole Spacing: 52/52/52mm.(Neck/Middle/Bridge).

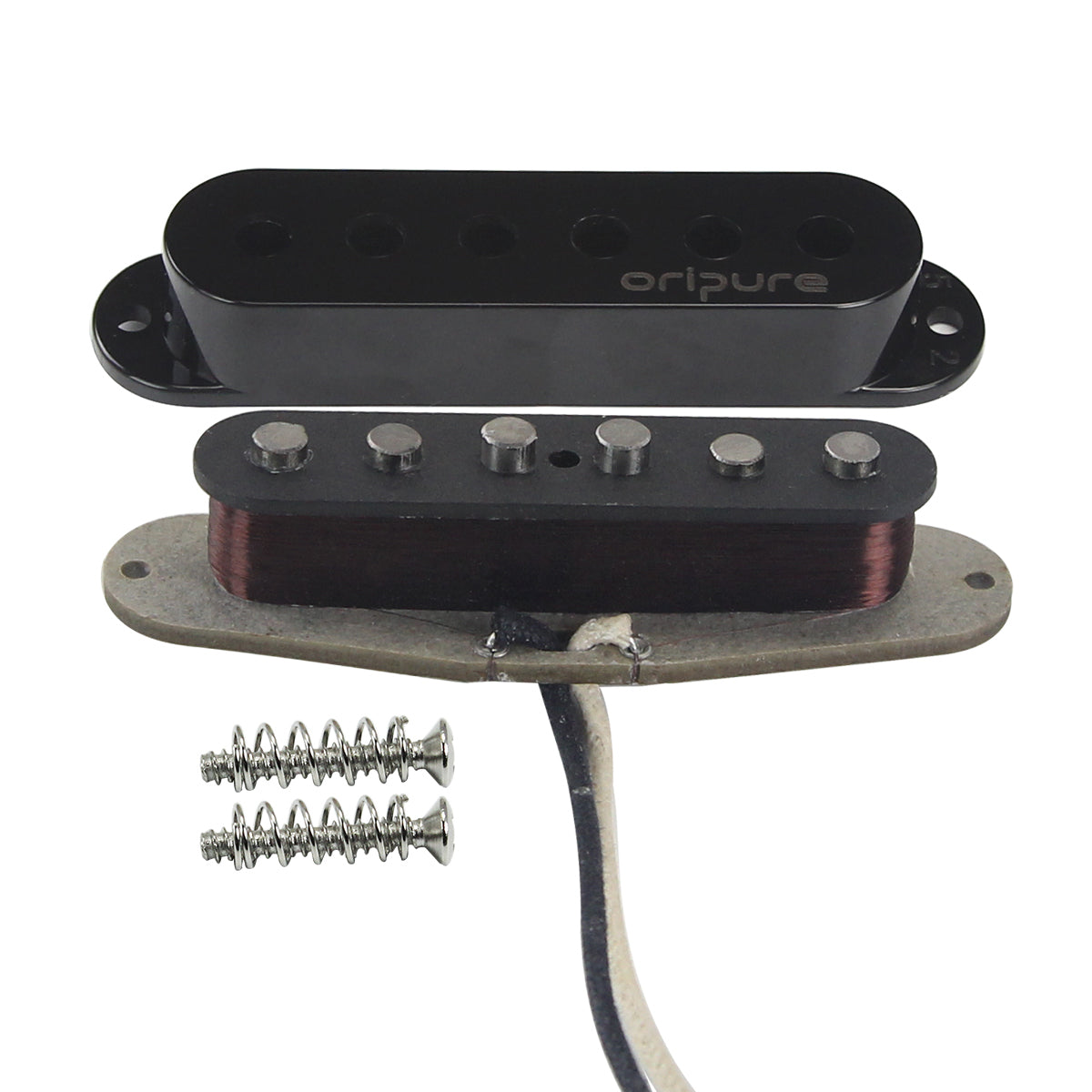

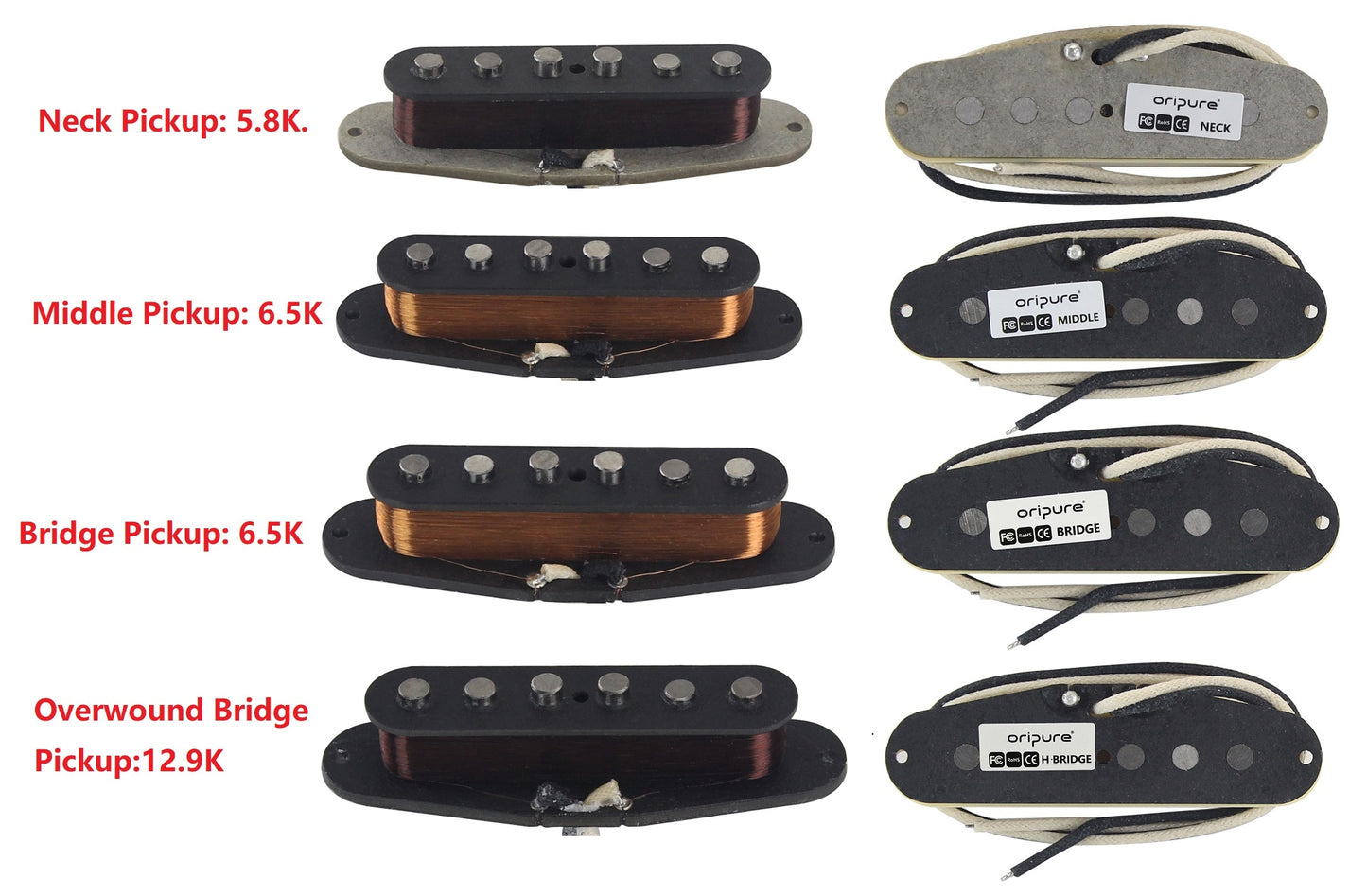

          Neck Pickup:

          🎵Inductance H: 2.2H.

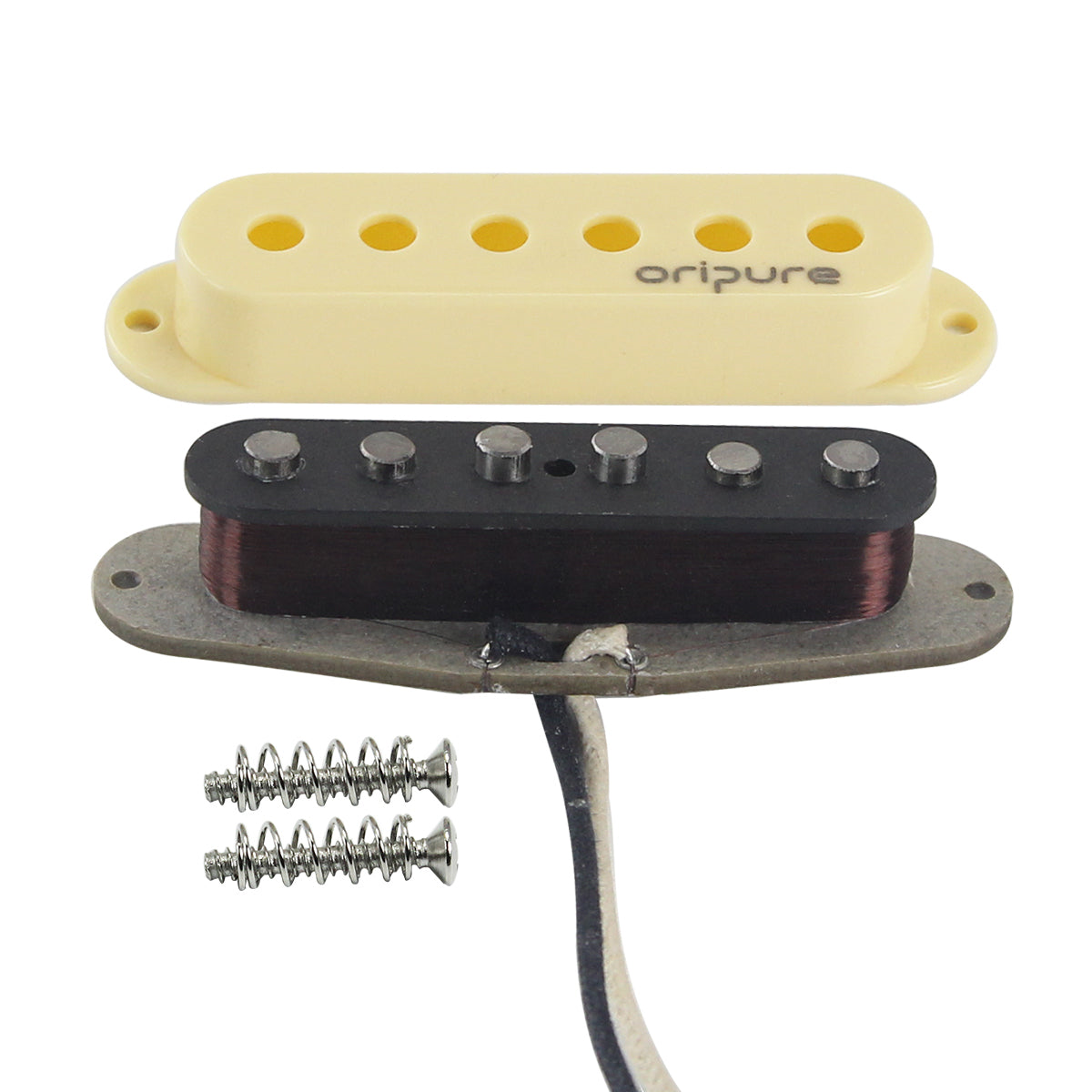

          🎵Bobbin: Grey color vulcanized fiber bobbin.

            Middle Pickup:

            🎵Inductance H: 2.8H
            🎵Winding:Reverse (RWRP)

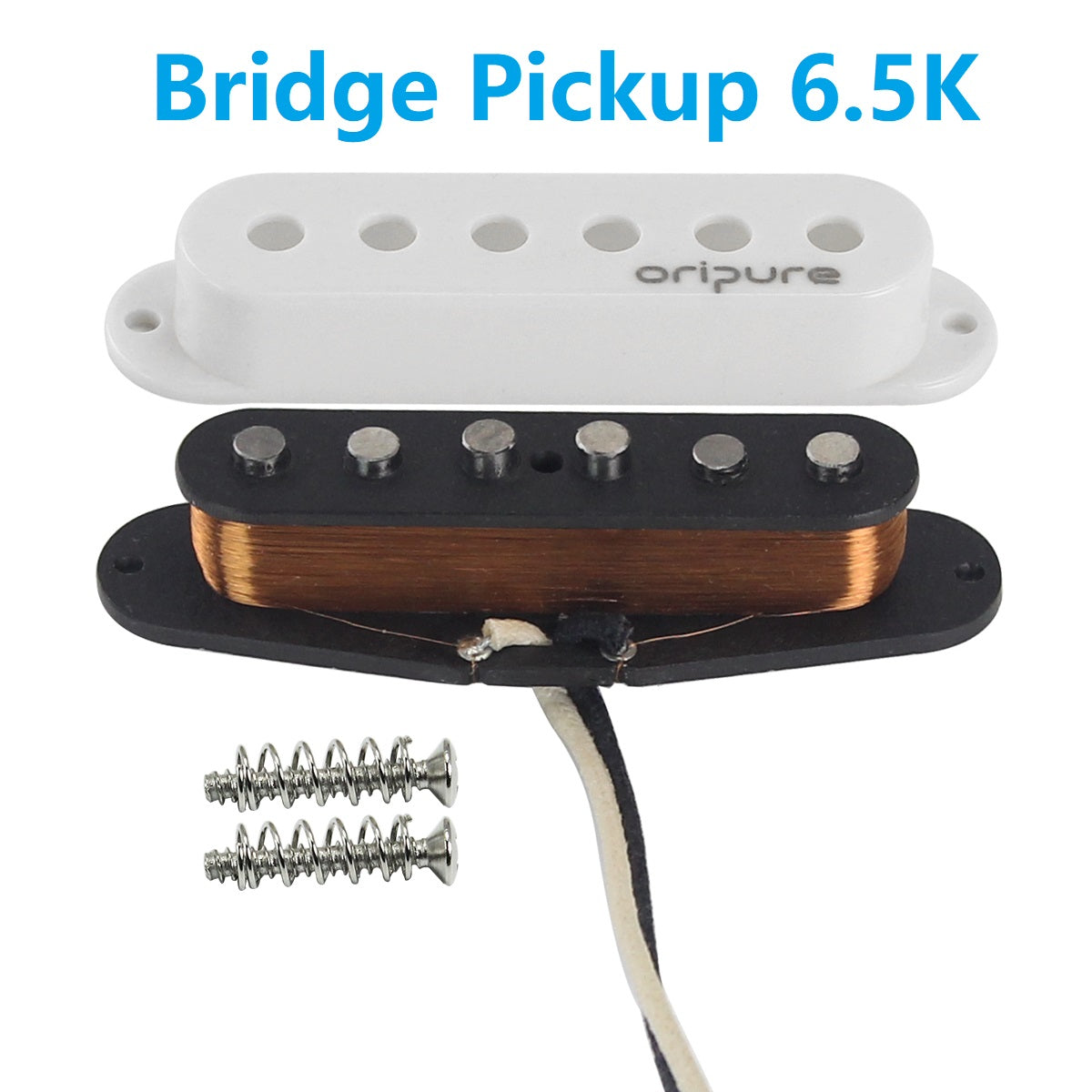

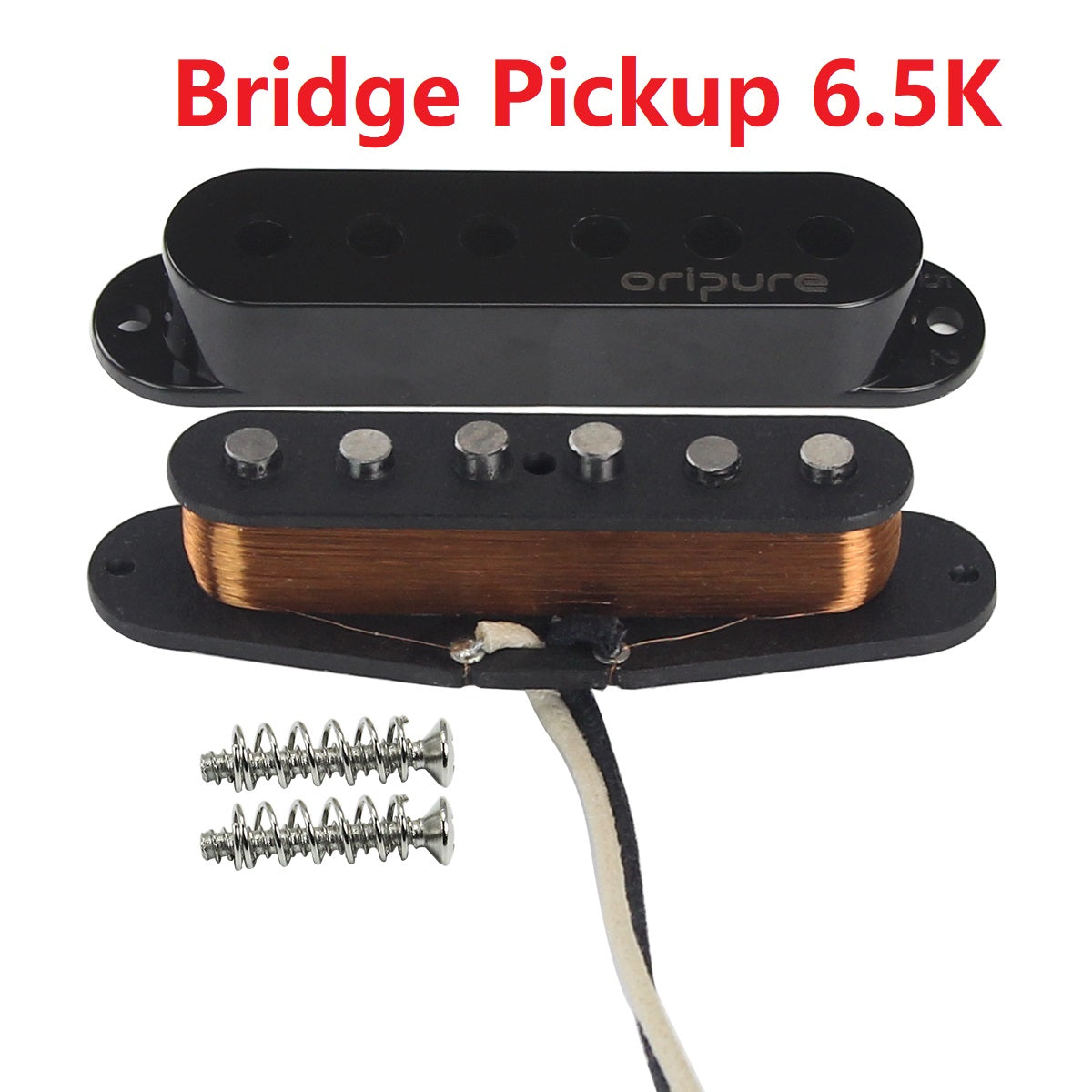

              Bridge Pickup:

              🎵Inductance H: 2.8H

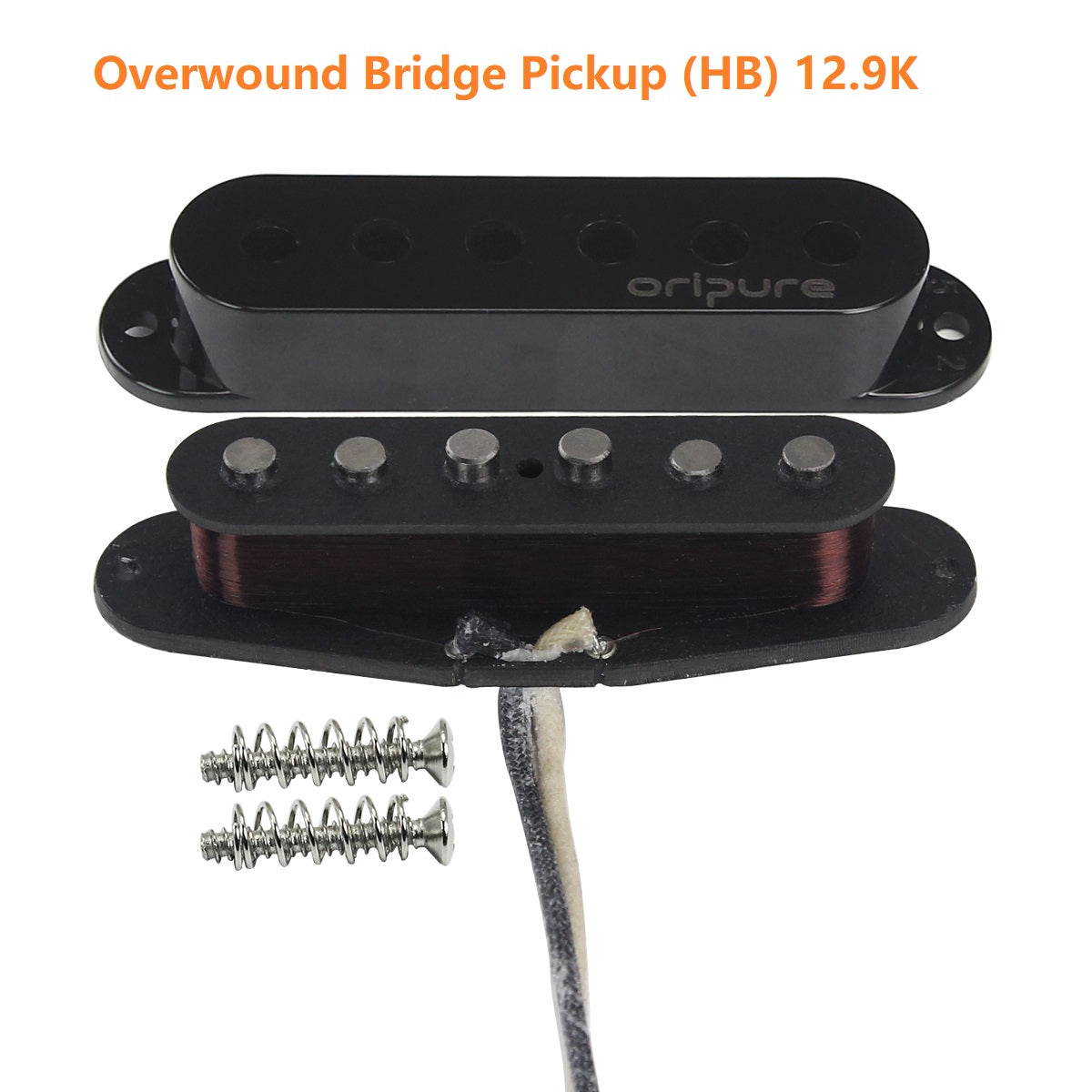

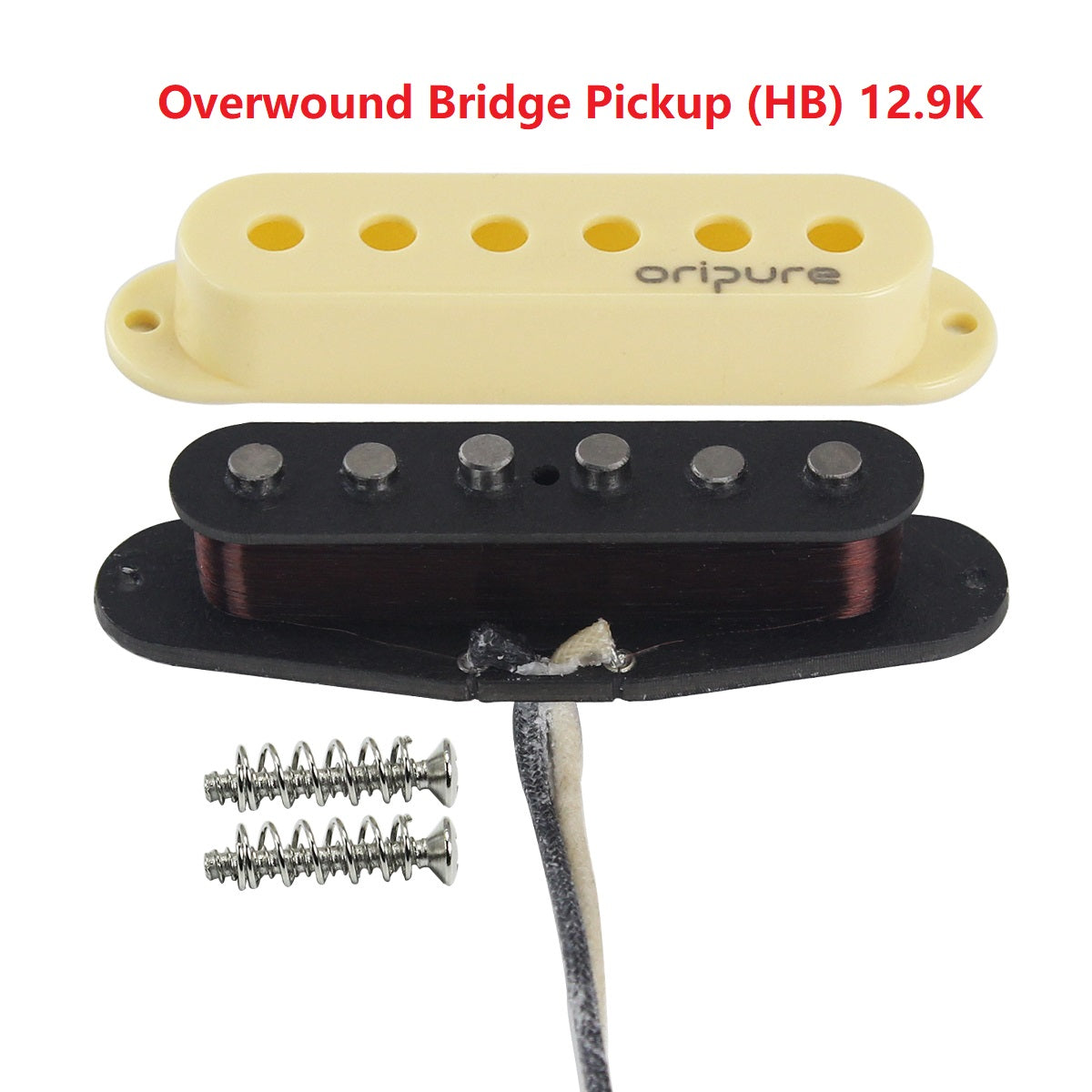

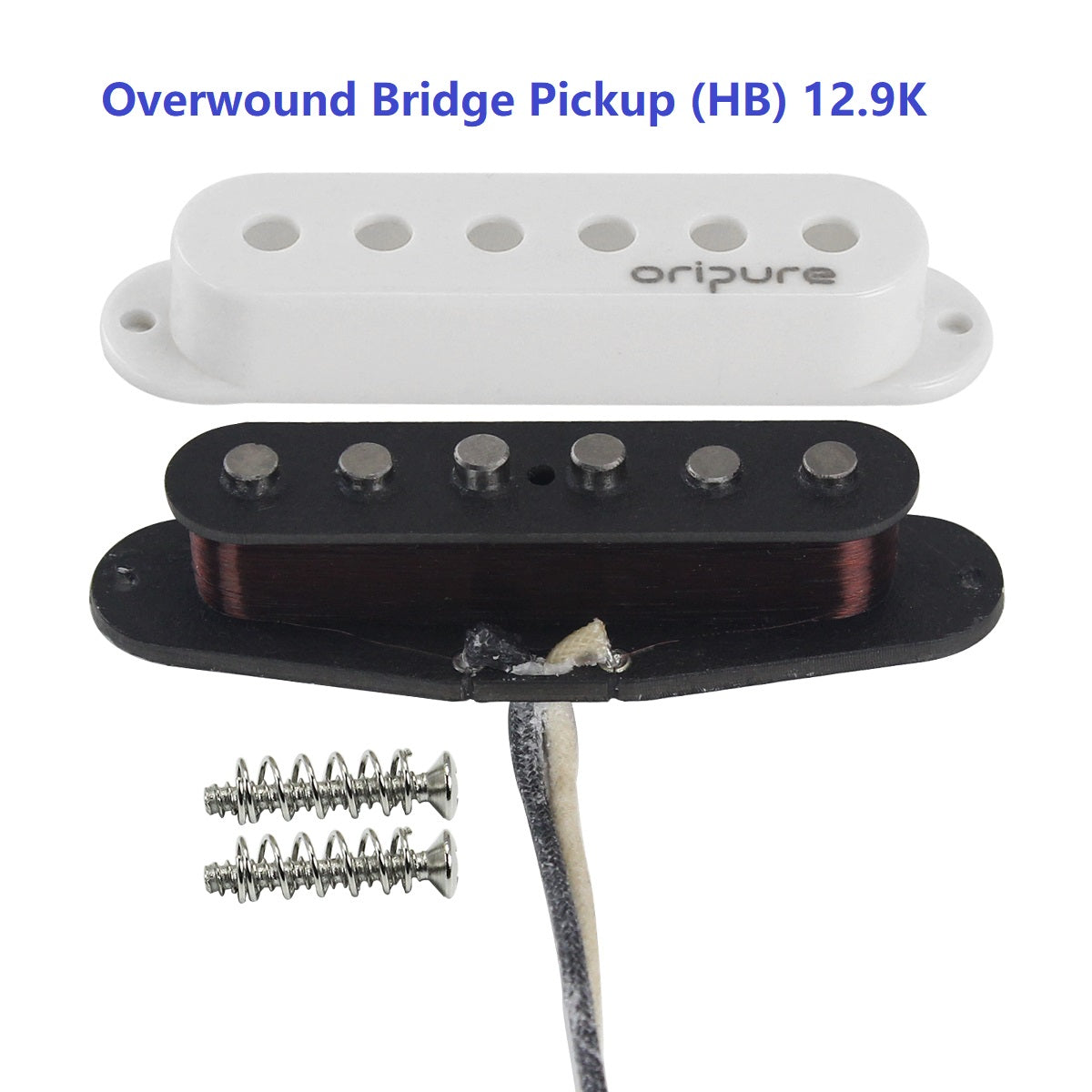

              Overwound Bridge Pickup (HB):

              🎵Inductance H: 10.5H


              All parameters for reference, the actual may be a bit deviation. The actual effect of tone will be a little different from different guitars or related equipment.

              The DC Resistance we marked will change due to the difference in ambient temperature, and the range of change will reach 500Ω. In case of extreme temperature, the range of change will be greater.

                We will send the order according to your choice, thank you!
